EXCITECH integrated loading & labeling robot paired with dust-free nesting machine, only 13.8×6.3m footprint, continuous unmanned panel processing for custom cabinet factories.

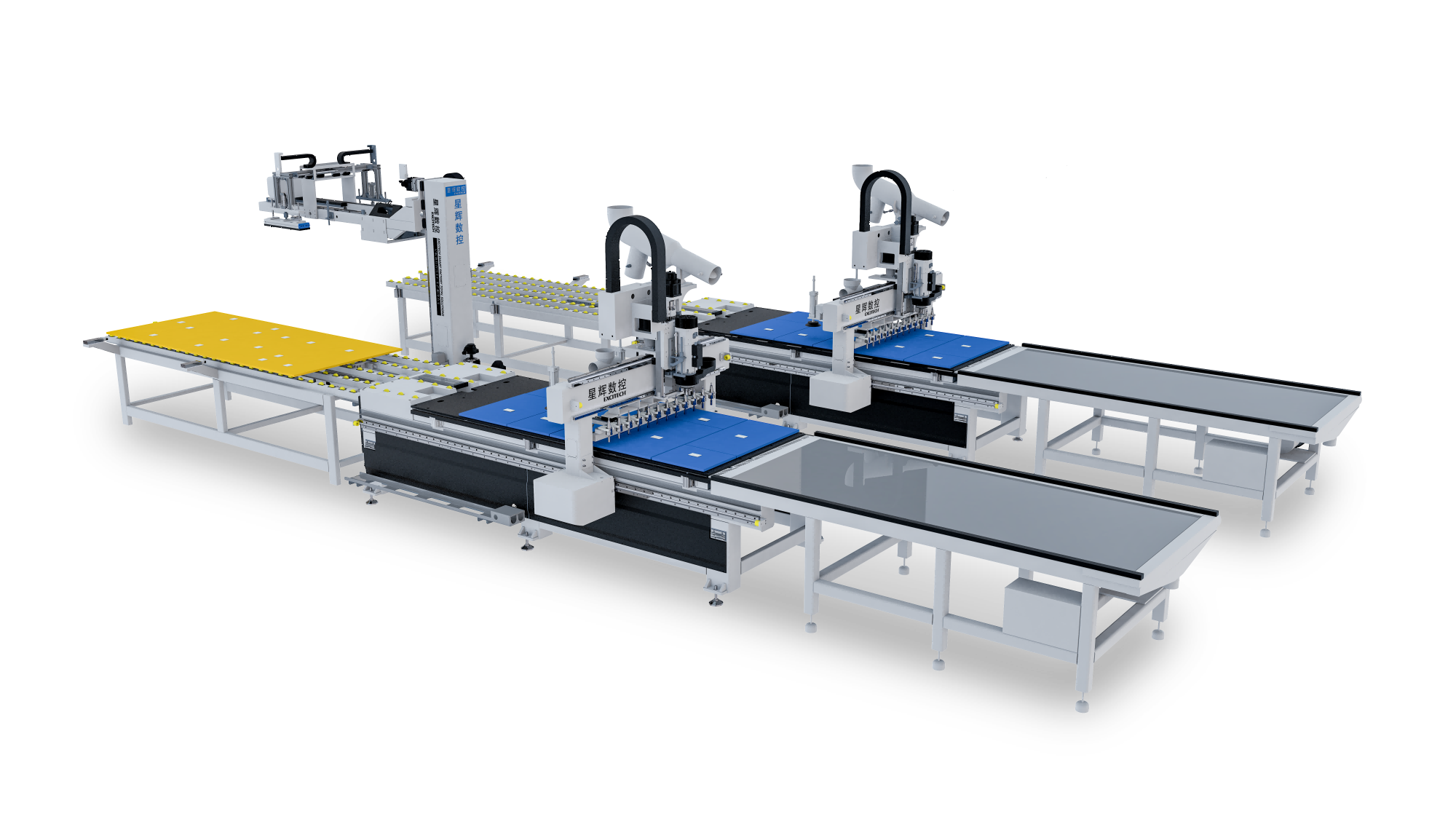

EXCITECH 2-in-1 Load & Label Robot Nesting Cell is a compact automated cutting workstation designed for small and medium-sized cabinet factories and existing workshop retrofits. It integrates panel picking, rotary barcode labeling and dust-free nesting in one unified layout to support continuous unattended production.

1. Compact Integrated Layout, 13.8m × 6.3m Footprint

This unit integrates the material feeding area, labeling station, nesting processing zone and finished panel output area into one unified structure. With an overall footprint of 13.8m × 6.3m, it adapts to workshops with limited space or sites without conditions for large-scale reconstruction. Factories can deploy automated cutting processes within their existing workshop layout to improve space utilization.

2. Integrated Robotic Loading & Rotary Labeling

The robotic system completes panel picking from the material rack and rotary barcode labeling during panel transportation to the nesting machine, eliminating independent labeling stations and secondary material handling. The multi-angle rotary labeling structure ensures standard label positioning on each panel edge.

Automated labeling reduces manual operation errors. Each panel is marked with an independent barcode to maintain stable data connection with downstream edge banding, six-sided drilling and sorting processes. The system supports cyclic operation, enabling parallel robot preparation and machine cutting to reduce equipment idle time.

3. Dust-Free Nesting Structure Protects Decorative Panel Surfaces

The supporting nesting machine adopts an enclosed dust removal structure with top brushing covers and centralized dust collection. It removes wood chips and debris during cutting to reduce surface and groove dust residue.

This structure lowers dust-related scratches on PET, high-gloss and melamine panels, reduces post-cleaning workload, and maintains consistent workpiece quality. The low-dust processing environment meets conventional environmental standards for furniture export production.

4. Stable Mechanical Structure for Long-Term Batch Processing

The nesting machine adopts integrally welded and stress-relieved bed structure to maintain stable machining accuracy during long-hour continuous operation. Equipped with an automatic linear tool change spindle, it completes cutting, drilling and grooving in one clamping cycle, covering conventional cabinet panels, wardrobe doors and special-shaped components.

Independent vacuum adsorption zones provide stable fixing for narrow strips and ultra-long door panels during processing.

5. Modular Expandable Design for Gradual Factory Upgrading

The workstation reserves standard docking interfaces for subsequent intelligent production expansion:

1. Compatible with EXCITECH vertical panel storage system to realize automatic raw material feeding.

2. Support installation of automatic unloading and stacking robots to form closed-loop cutting production.

3. Connectable with edge banders, six-sided drilling machines and conveying lines to build a complete automated panel production workflow.

Applicable Scenarios

Small and medium-sized custom cabinet factories with limited workshop space

Existing workshops requiring low-cost intelligent renovation

Factories needing reduced manual handling and stable full-process data traceability

Manufacturers producing high-gloss and scratch-sensitive decorative furniture panels

If your workshop is restricted by insufficient floor space, unstable manual labeling or labor-intensive material handling, contact the EXCITECH US team to obtain layout drawings, operation videos and local factory project cases.
