EXCITECH G70U Full-Servo Laser Edgebander | Adjustment-Free High-End Cabinet Production

EXCITECH G70U full-servo laser edgebander supports laser & PUR dual processes, heavy-duty stable high-speed running, eliminates reliance on skilled setup operators. Learn more for unmanned furniture production lines.

High-end custom cabinet manufacturers commonly face consistent production challenges: limited availability of experienced edgeband setup technicians, inconsistent finishing quality during frequent order changeovers, edge chipping at high feeding speeds, and precision deviation when processing long door panels. Traditional edgebanders require repeated manual tuning for different panel thicknesses, materials and edge tape types, consuming extra setup time and restricting production flexibility.

Developed to address these practical industry pain points, the EXCITECH G70U full-servo laser edgebander serves as a core production machine for scaled premium custom furniture manufacturing. It delivers one-click adjustment-free operation, stable high-speed performance, switchable laser and PUR dual processes, and reliable compatibility with complex panel workpieces. The model supports semi-automatic and unmanned production workflows for modern cabinet factories.

1. True Full-Servo Drive Structure Enables Adjustment-Free Operation

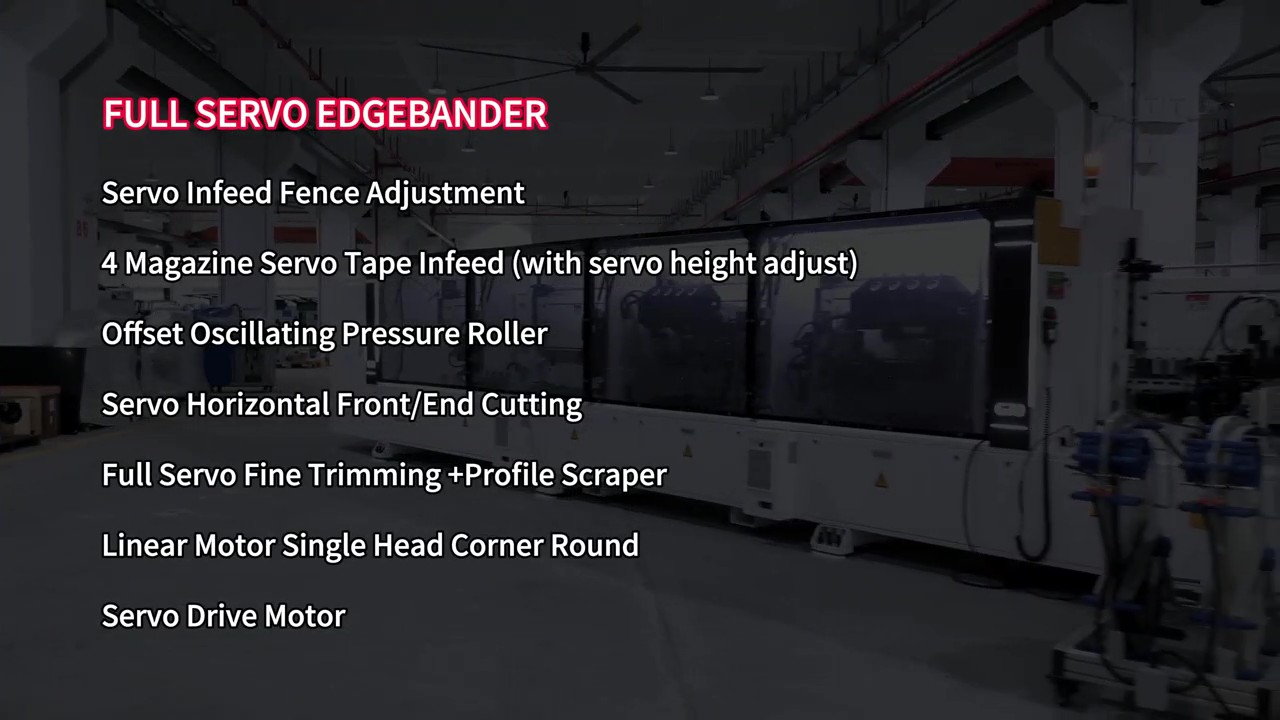

Most commercial edgebanders adopt hybrid pneumatic and servo configurations, requiring manual recalibration during job switching. The G70U integrates full-servo control across all core working stations, including positioning fence, 4-channel height-adjustable tape feeding, swing pressing unit, horizontal front and rear end cutting, rough trimming, fine trimming, scraping and corner tracking.

All processing parameters can be saved as digital recipes. Operators can recall preset parameters with one click when switching panel specifications, edge tape types or production processes, without manual mechanical adjustment. Equipped with a magnetic levitation linear motor corner rounding unit, the machine maintains stable precision for curved edge finishing and reduces secondary manual touch-up work.

Practical Workshop Value: Standardized parameter storage lowers technical barriers for new operators and reduces factory dependence on senior setup technicians. It stabilizes consistent finishing quality and shortens job changeover intervals for mixed production orders.

2. Heavy-Duty Steel Rail & Steel Beam Frame Ensures Long-Term Operational Stability

Continuous high-speed operation often causes vibration and precision deviation on ordinary edgebanders after long-term use. The G70U adopts an integrated heavy steel rail and steel beam bed with professional stress relief treatment, effectively reducing structural vibration and deformation during long-shift continuous production.

Equipped with a tank chain track conveying system, the machine supports four adjustable feeding speed modes (20/24/28/32 m/min) to balance production efficiency and finishing quality. Servo-driven horizontal end cutting keeps clean and flat edge trimming even under high-speed operation. The rigid frame structure maintains stable machining accuracy for long-term batch production and reserves interfaces for subsequent double-side edgebanding line expansion.

3. Laser + Dual-Color PUR Dual Process Matches Diversified Premium Orders

The G70U supports two mature high-end edgebanding processes for flexible switching, adapting to multi-scenario production demands of North American custom cabinet factories:

✅ Laser Edgebanding: Delivers glue-free invisible joint effect, suitable for PET high-gloss, matte and fingerprint-resistant decorative panels for high-end door production.

✅ Dual-color Clean PUR System: Provides stable bonding strength and moisture resistance, applicable to particleboard, plywood and standard cabinet components, fitting humid-environment furniture such as kitchen and bathroom cabinets.

The dual-process design allows one machine to handle both ultra-fine seamless finishing and durable conventional edge sealing, simplifying equipment allocation for factories with mixed high-end orders.

4. Complete One-Pass Processing & Reliable Complex Panel Compatibility

The G70U covers full edgebanding procedures in one continuous panel pass: servo fence positioning, optional thickness detection, pre-spray, pre-milling, laser/PUR gluing, tape feeding, pressing, rough trimming, servo horizontal front cutting, full-servo fine trimming, full-servo scraping, servo horizontal rear cutting, magnetic levitation tracking, floating flat scraping, anti-collision dual pneumatic buffing and post-spray.

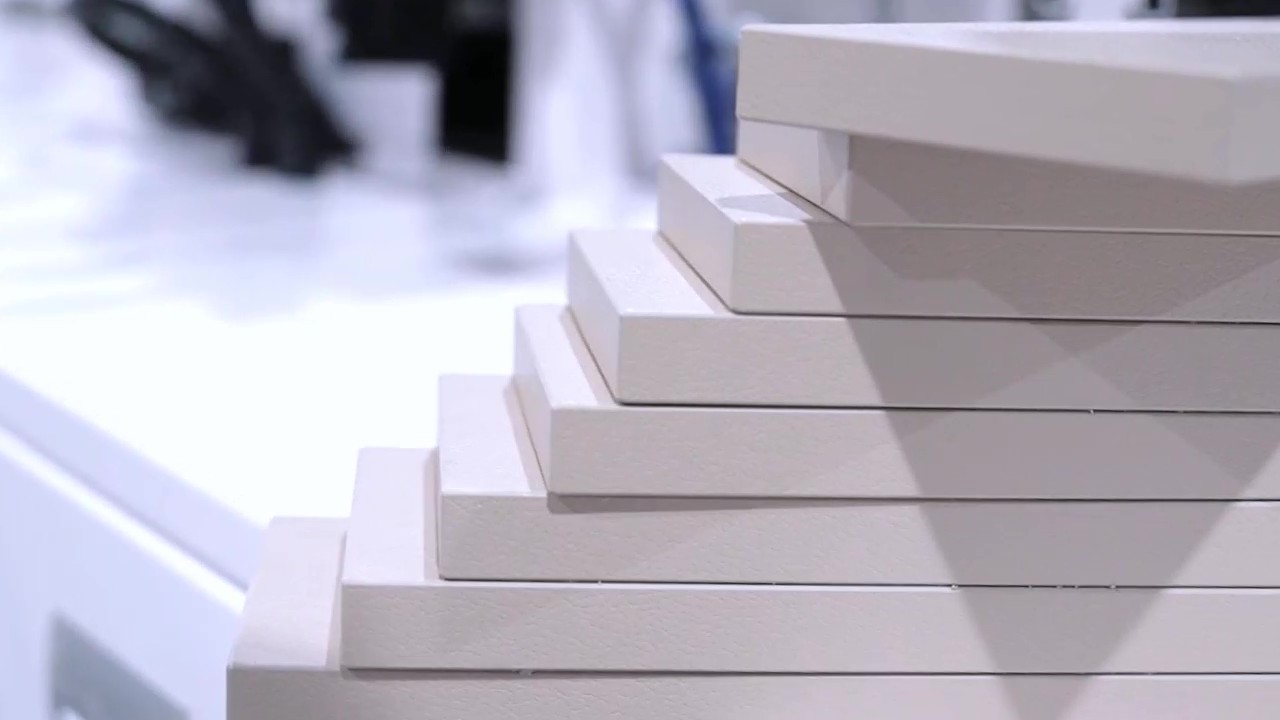

The machine stably processes complex workpieces including notched panels, hinge cutout panels, grooved structural parts, 80mm narrow strips and 3.1m ultra-long door panels. It maintains machining tolerance within ±0.1mm, meeting standard precision requirements for high-end custom millwork.

5. Global Manufacturing & Localized After-Sales Support

EXCITECH operates two standardized manufacturing bases in Jinan and Zhaoqing, with a total production area of 96,000 square meters and over 20 years of specialized R&D and manufacturing experience in woodworking CNC equipment. Mainstream models adopt unified general spare parts to shorten maintenance and replacement cycles.

Supported by a global service system and local US&EU office, EXCITECH provides standardized equipment installation, operator training and routine maintenance services for North American customers, ensuring stable after-sales response and technical support.

Why EXCITECH G70U for North American Cabinet Factories

Core positioning: Adjustment-Free Means Consistent Stability

For high-end custom manufacturers upgrading toward smart and unmanned production, manual adjustment is the main variable affecting batch quality consistency. The G70U full-servo digital structure standardizes all processing parameters, stabilizes finishing quality, accelerates order switching efficiency, and adapts to high-mix complex panel production. It supports seamless connection with robotic loading/unloading systems, nesting machines and automatic conveying lines.

Contact & Inquiry

Contact the EXCITECH team to obtain detailed G70U technical specifications, on-site operation videos and customized production line upgrade solutions.

Official Website: www.excitech-cnc.com
