EF588GWU‑LASER Full‑Servo Laser Edgebander | Laser & PUR Dual‑Process Edge Banding Machine

Heavy‑duty steel rail‑beam laser edgebander, one‑click recipe change‑over, handles narrow panels. Ideal for panel furniture & cabinet production.

Furniture manufacturers commonly encounter practical production issues: precision deviation after long‑hour continuous operation, heavy dependence on skilled technicians for manual adjustment, frequent downtime for glue tank cleaning, and unstable processing results for narrow panels and PET high‑gloss boards.

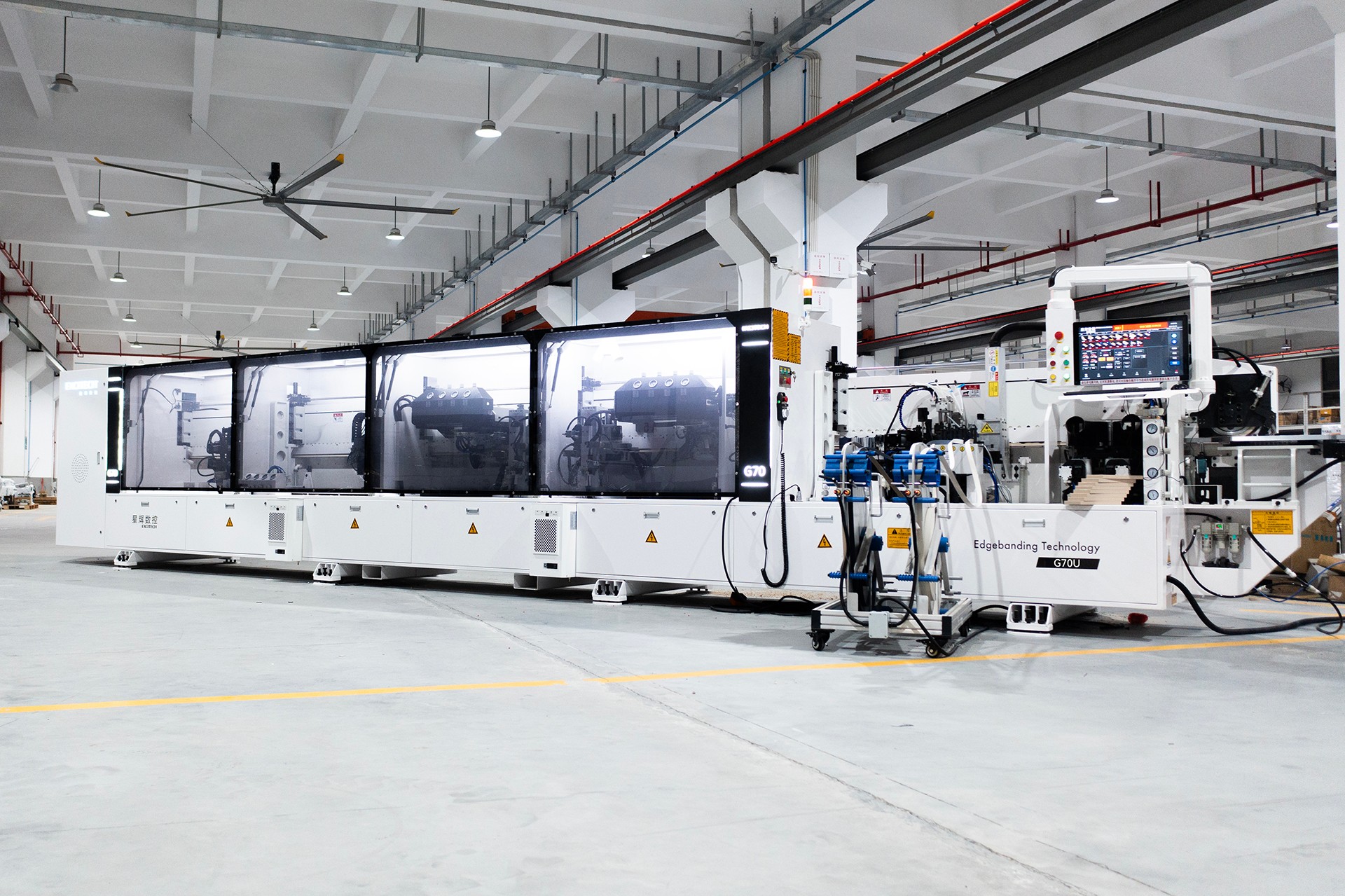

The EXCITECH 588GWU‑LASER is an upgraded variant of the 588 edgebander series, developed for panel furniture and door‑wall‑cabinet integrated production. It features heavy‑duty steel rail‑beam frame, full‑servo control, alongside laser and no‑clean PUR dual‑process, delivering steady output and simplified operation for furniture facilities of different scales.

Each unit is produced at EXCITECH’s 96000㎡ manufacturing base in Guangdong and goes through standardized quality inspection. The machine supports docking with automatic unmanned production cells and EXCITECH turn‑key smart factory solutions.

Heavy‑Duty One‑Piece Frame Structure for Long‑Run Stable Performance

Frame rigidity directly determines edgebanding consistency during prolonged continuous operation.

588GWU‑LASER adopts integrated steel rail and steel beam construction. Its heavy‑duty welded bed receives stress‑relieving annealing treatment. The high‑rigidity structure suppresses vibration under high‑speed operation, preventing tool oscillation and precision drift during continuous runs. It maintains consistent edgebanding performance when integrated into automated production lines.

Complete Process Workflow: One‑pass Edge Banding

Full process stations in sequence:

Pre‑spraying → Pre‑milling → 3kW laser edgebanding → Dual‑color no‑clean PUR unit → Servo belt feeding → Servo pressure bonding → Rough trimming → Servo fine trimming → Servo scraping → End cutting → Floating flat scraping → Four‑corner tracking (optional full‑servo 4‑axis tracking upgrade) → Post‑spraying → Double buffing.

Core process highlights

1. 3kW rectangular‑spot laser unit

Achieves molecular‑level fusion between edge strip and workpiece. Reduces visible glue line and delivers good anti‑yellowing performance, applicable for PET, high‑gloss and soft‑touch panels.

2. Dual‑color no‑clean PUR system

Works in conjunction with laser processing to support thick edge strips and multi‑color edge tapes. The no‑clean structure cuts downtime generated by glue tank maintenance work.

3. Four‑knife corner tracking system

Pneumatic four‑knife tracking comes as standard; full‑servo four‑axis tracking is available as optional upgrade. It secures stable corner rounding for narrow workpieces and panel ends.

4. Stable processing for narrow panels down to 40mm

Processes narrow strips and slim frame components widely used in door‑wall‑cabinet projects. Supports panel thickness ranging from 9 mm to 60 mm, covering a broad scope of workpiece specifications on one machine.

Full‑Servo Control & One‑Click Recipe Function: Reduce Reliance on Skilled Operators

Many furniture workshops face shortages of experienced setup operators. On 588GWU‑LASER, key stations including trimming, scraping and corner tracking adopt servo‑driven design. Operators finish position adjustment via touch‑screen instead of manual hand‑wheel tuning.

Critical parameters such as tool position, pressing pressure and running speed can be saved as production recipes. When switching panel thickness or edge‑tape types, operators recall stored recipes with one click. New operators can get familiar with basic operation within one working day.

Standardized parameter output lowers quality variation caused by manual operation. Fast order change‑over makes the machine suitable for automatic unmanned production lines.

Who Should Consider 588GWU‑LASER Edgebander？

This machine suits furniture factories producing whole‑house cabinetry, door‑wall‑cabinet products and PET high‑gloss panels across different capacity scales.

It serves as a feasible upgrade for factories switching from conventional EVA or single‑PUR edgebanding equipment, helping ease the pressure of insufficient experienced operators.

Instead of deploying multiple dedicated machines for different processes, manufacturers can complete most edgebanding tasks with this single unit. Heavy‑duty frame guarantees long‑term mechanical stability; laser‑PUR dual‑process expands production capability; full‑servo recipe function mitigates labor‑shortage‑related risks.

EXCITECH 588GWU‑LASER combines rigid steel rail‑beam bed, full‑servo control, laser & no‑clean PUR dual‑process, narrow‑panel processing capacity and recipe‑based operation. It is a practical edgebanding solution for modern furniture factories pursuing stable quality, simple operation and automation compatibility.

Contact our team for technical datasheets, line‑integration cases or quotation requests.
