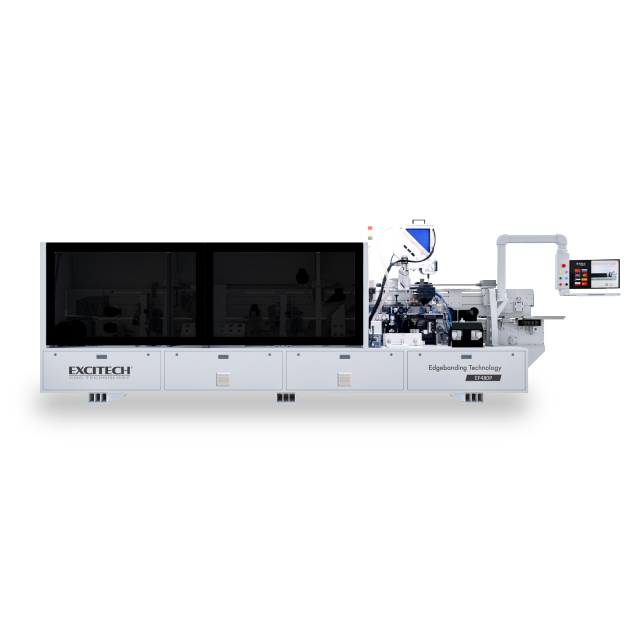

EXCITECH EF480P belt‑conveyor edgebander features full‑servo stations, one‑click on‑screen radius adjustment, nesting‑bridge capability for panels with pre‑drilled hinge holes.

Optional three‑in‑one glue pot and 4‑magazine servo tape infeed. Overall length: 19'‑2.71" (5860 mm).

Cabinet manufacturers and custom cabinetmakers running batch‑size‑one high‑mix orders frequently struggle with time‑consuming manual mechanical adjustments on edgebanders. Repeated job change‑overs rely heavily on skilled operators, raising setup errors, inconsistent edge finishing quality and unplanned downtime. Processing nested panels pre‑drilled with hinge holes also brings risks of tool‑to‑panel interference, chipping and part damage on conventional edgebanding equipment.

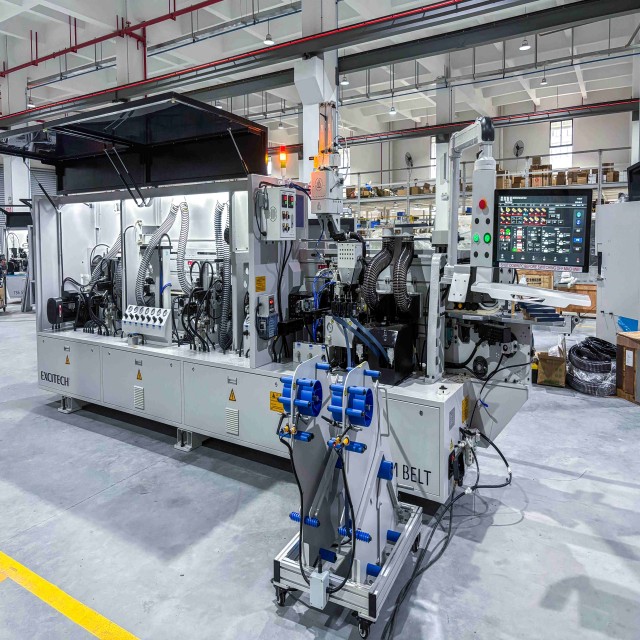

Built to resolve those real‑world shop‑floor pain‑points, the EXCITECH® EF480P servo‑driven edgebander with belt conveyor** delivers servo‑controlled adjustments across key processing stations. Operators complete parameter configuration directly via touch‑screen rather than manual knob tuning, greatly shortening change‑over cycles for mixed cabinet‑component orders. Total machine footprint length measures **19'‑2.71" (5860 mm).

Core Standard Capabilities

Every key station adopts servo‑actuated positioning for repeatable, stable edge finishing:

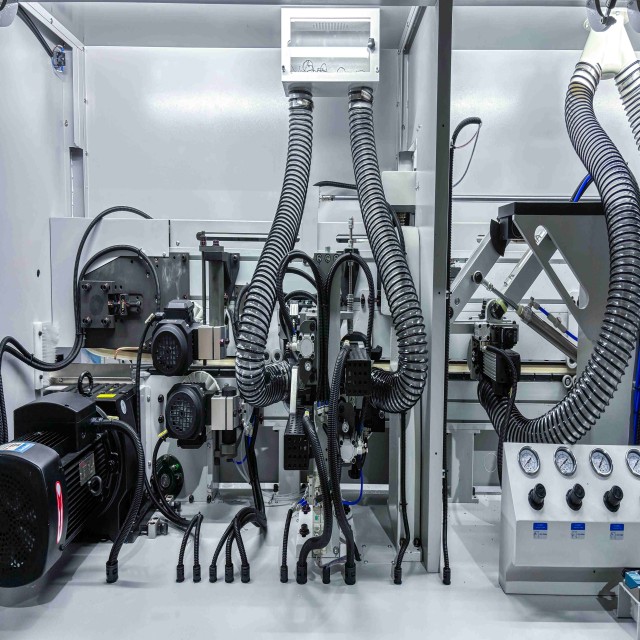

1. Servo Fine‑Trimming and Profile Scraper for Two Radiuses

Servo‑controlled fine‑trimming and profile scraper stations handle two‑radius corner profiles. Servo positioning eliminates guesswork from manual mechanical tuning and maintains uniform finish across continuous production runs.

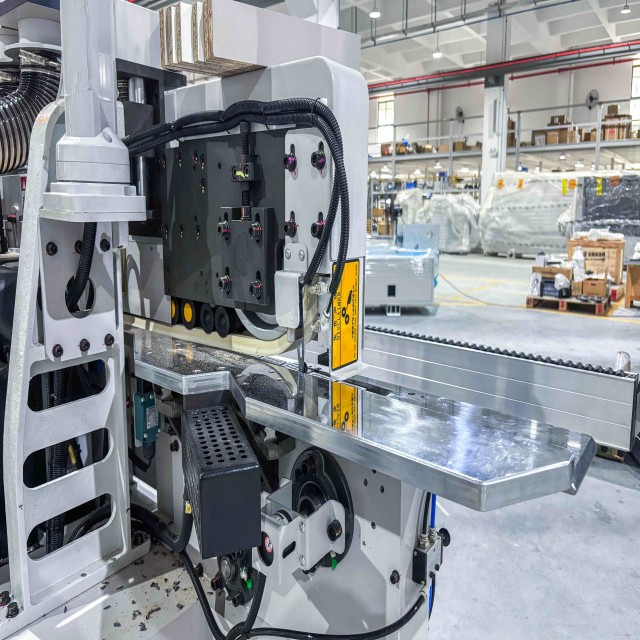

2. Servo‑driven infeed fence adjustment, servo pressing and servo tape infeed

Infeed fence positioning, panel pressing force and edge‑tape feeding are fully managed by servo drives. Settings are modified on‑screen, stabilizing panel travel and edge‑tape delivery for mixed‑thickness and mixed‑size workpieces.

3. One‑click on‑screen radius adjustment

Radius‑profile parameters can be reconfigured with a single touch‑screen command. This drastically accelerates switching between different corner‑radius specifications for cabinet doors and cabinet components.

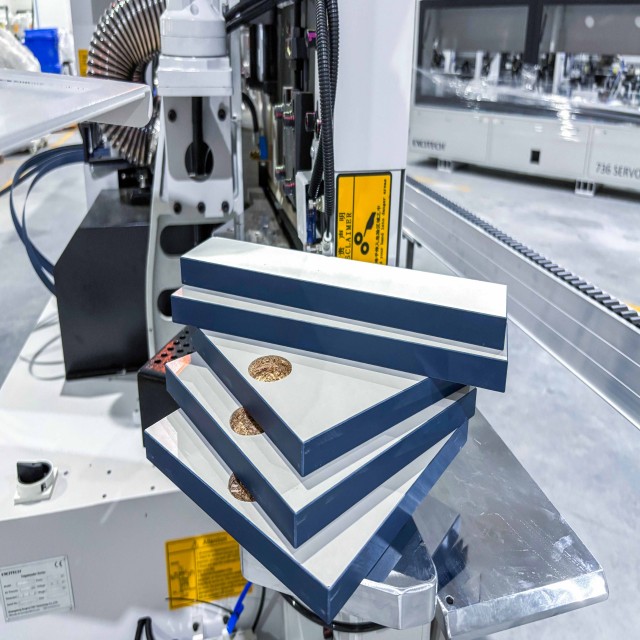

4. Nesting‑Bridge design for panels with pre‑drilled hinge holes

The integrated nesting‑bridge structure supports reliable edgebanding for nesting‑bridge‑processed panels carrying pre‑drilled hinge holes. It avoids tool‑and‑panel interference that would otherwise cause chipping or surface damage, delivering clean finished edges for pre‑machined nested parts.

Optional Upgrade Modules

Shops can expand functionality with selectable add‑ons to match diverse production requirements:

Three‑in‑one glue pot (OPTION): Enables flexible glue‑type switching for varied cabinet‑shop edgebanding workflows.

4‑magazine servo tape infeed (OPTION): Four‑position servo‑driven edge‑tape magazine cuts downtime during frequent edge‑tape‑color and‑specification change‑overs.

Operational Benefits for Cabinet Shops

Reduced operator‑skill dependency: Servo‑automated stations shift adjustments to the intuitive touch‑screen interface, lowering training burden and minimizing human‑caused setup errors.

Maximize uptime for batch‑size‑one:One‑click on‑screen parameter adjustments compress change‑over time for dissimilar custom cabinet‑part orders.

Consistent repeatable finishing: Servo‑driven stations return to identical positioning for every new job, ensuring stable trimming, scraping and pressing performance run after run.

Enhanced process compatibility for nested parts: Nesting‑bridge capability expands processing scope for pre‑drilled nested cabinet components without secondary manual handling.

Modular upgrade path:Operate the base‑configuration machine first; activate optional glue‑pot or multi‑magazine tape‑infeed hardware later as production volumes grow.

Ideal Application Scenarios

The EF480P belt‑conveyor servo‑driven edgebander targets custom cabinetmakers, cabinet‑component fabricators and architectural millwork facilities conducting high‑mix custom cabinet‑door and cabinet‑part manufacturing. It fits both new‑shop deployments and retrofits into existing nesting‑cell production layouts.

For full spec‑sheets, demonstration footage or request‑for‑quote support, please reach out to our team.

Email: export@excitechcnc.com

WhatsApp: +86 186 5319 8309

About EXCITECH

EXCITECH designs and manufactures CNC wood‑processing machinery and modular production‑cell solutions, supporting custom cabinetmakers, closet producers and architectural millwork operations across global markets. More than 1,000 Worldwide Successful Installations globally.
