Edge Banding Machine
  • Air ProEdge Banding Machine

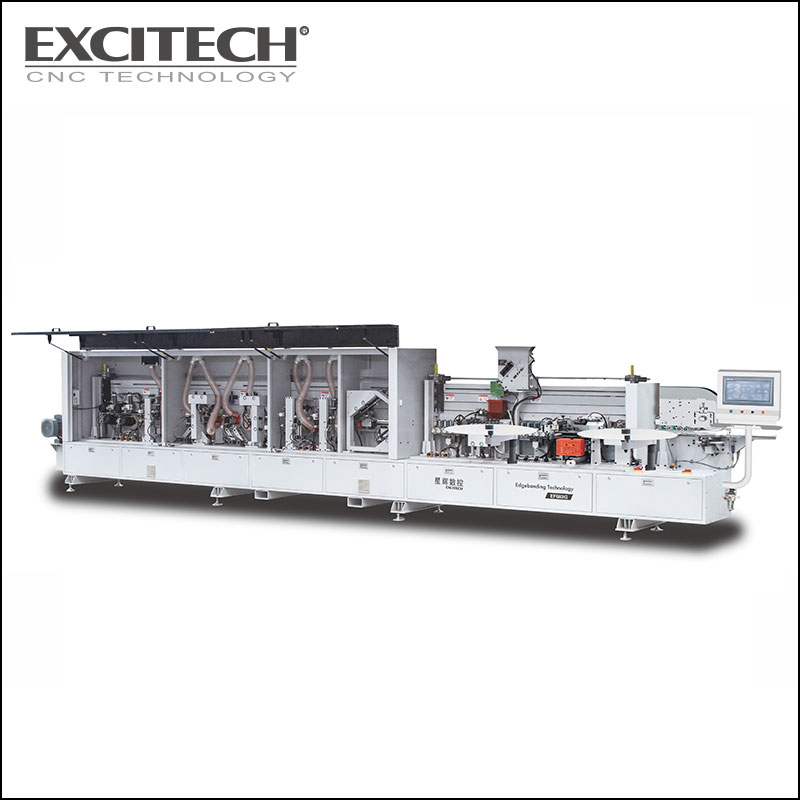

Edge Banding Machine

Edge Banding Machine features with Double Gluing+Pre-milling + Corner Trimming with a solid rigid and heavy-duty base frame, to enhance the edge-banding effect.

Send Inquiry

Product Description

Edge Banding Machine

1.Edge Banding Machine Introduction

Mainly used to deal with the panel edge banding. Edge banding is a very important process for the panel furniture. The quality of the edge banding will effect the panel furniture quality, price and the levels. A nice edge banding will definitely improve the furniture appearance,and avoid the furniture edge broken or peeling during transportation and the using.

In the meanwhile, a good edge banding will protect the furniture from the water as well as reduce its shape changing. Equipped with pneumatic adjustment to adjust the double trimming, it’s fast to switch from thin edge banding to thick edge banding.Its main feature is high automation, high efficiency,high precision and nice appearance, it’s widely used in the panel furniture field.


2.Edge Banding Machine Parameter (Specification)




Net Weight

Working Speed

Panel Thickness

Min panel size

Edge Thickness

Edge width

Min.Panel length

Min.Panel Width

Dust Extraction Info.














3.Edge Banding Machine Feature And Application

  EF683G High-speed Edgebanding Machine features with double V-belt Top Pressure System, to fit the panel better and press tighter.

  Equipped with diamond tools for better cut and longer use.

  The main material of the panel furniture is chipboard, MDF and other artificial board. The banding is mainly have PVC,wood,melamine and the polyester.The different materials and sizes need different models of edgebanders.

  Uninterrupted production with automatic machines enables furniture maker to add extra shifts with minimum extra cost and concerns.

  Smarter, more cost efficient production, quicker delivery and better quality allow furniture makers to further expand production and sales , achieving higher return on capital and property.

  More individualized products for end-users.


4.Edge Banding Machine Details

Double V-belt top pressure→Spray release agent→Pre-milling→Single wheel tape magazine 1→Gluing 1→Pneumatic controlled Pressing 1→Single wheel tape magazine 2→Gluing 2→Pneumatic controlled Pressing 2→  Double rail end trimming→Rough trimming→Pneumatic controlled Fine trimming→High-speed corner trimming→Pneumatic controlled scraping→Flat scraping→Off-cut→Spray cleaning agent→Pneumatic controlled Buffing 1→Pneumatic controlled Buffing 2

Main Function

——Double V-belt Top Pressure System——

Enable the EF683G High-speed Edgebanding Machine to fit the panel better and press tighter

——Pre-milling unit——

Equipped with diamond tools for better cut and longer use

——Gluing unit -Two glue reservoirs——

Two glue reservoirs to quickly switch between colors and thickness to achieve invisible joint.

——6 Roller Pressure——

One big precision roller and 5 small to make sure the edge is pressed seamlessly to the work-piece.

——Double rail end trimming——

——Rough trimming & Fine trimming——

——High-speed corner trimming——

with 4 motors, this device works well with various edge thicknesses and invariably result in perfect round corner.

——R Scraping——

——Off-cut&Flat Scrapping——

——Buffing unit——

——Automatic lubricating oil——

—Optional  Different Glue Application Systems Available——

PUR Hotmelt & Hot Air Edgebanding Technology+Hotmelt Decice/Top Melt/Bottom Melt Optional

——Customized solution to fit your unique requirements——

5.Edge Banding Machine Qualification

Production Facility

Picture taken at customer's factory

In-house machining facility

Quality control and testing

EXCITECH Smart Factory Nesting Cell  in Our Partners’Factories



Award for International Registration of Trademark
Jinan Innovative Enterprise......


China Famous Brand
Shandong Famous Trademark
Jinan Famous Brand...


National Top 10 Well-Known CNC Manufacturer
Certificate for National Hi-Tech Enterprise...


UL、CE、EAC、CSA 、ISO Certificate and So on...

6.Deliver,Shipping And Serving


The EF683GI High-speed Edgebanding Machine is packed with anti-rust plastic film for cleaning and damp proofing.

FastenEF683GI High-speed Edgebanding Machine on the plywood pallet for safety and against clashing.



Qingdao Port / Tianjin Port / Shanghai / As appointed



  From your first inquiries about our machine to close the deal to installation to technical support and maintenance, our team will be always with you.

  Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the world , around the clock.

  No matter whether the machine is used in North America or Africa, we can run diagnostics via dial-in on any of our computer-equipped machines for troubleshooting and correct controller settings to have you running again in a minute.



1. What is the minimum panel size for this edgebanding machine?



2. When is it recommended to add the corner-trimming function on the edgebanding machine ?

Answer: To enhance the edge-banding effect, usually when you edge door products, it’s better to add it.


3. What drilling machine is recommended for this nesting machine?

——Recommended Matching Drilling Machine——

EHS1224 Six Sided Drilling Machine
