Vertical Panel Storage System

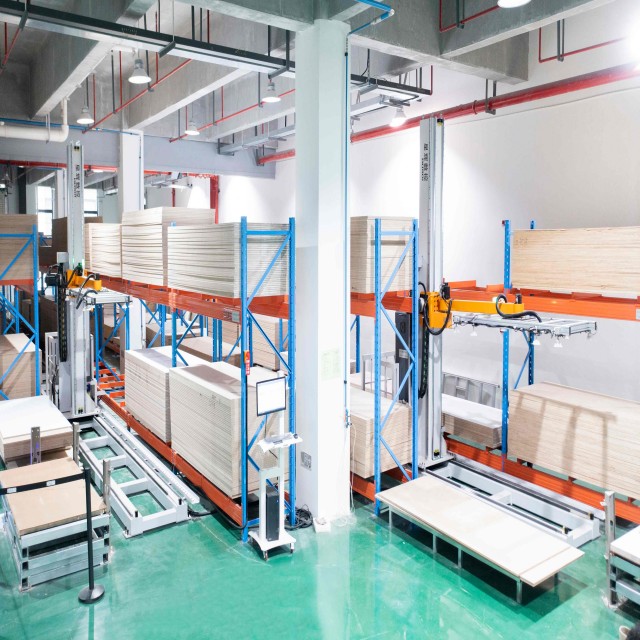

EXCITECH vertical storage systems complete the smart factory material flow: raw panels are stored, sorted and supplied to production cells automatically, replacing manual panel feeding and intermediate warehousing. The system includes the high-bay Vertical Storage (12-45m long, 6-12m wide), the Vertical Raw Material Warehouse (12/18/24/30m) that connects the raw material end with the machine end under visualized management, the Panel Storage for flat warehouse functions, and vertical/horizontal sorting units that handle multi-spec, high-frequency, flexible production. According to order information, the system switches between pallet assembly for cutting and panel warehousing at any time to match production takt. In- and out-of-storage operations are quick, accurate and easy, and stock details are updated in real time. With RGV/AGV guided vehicles, raw panel supply runs unattended as a customized batch production solution, while the EXCITECH MES central control monitors machine status, orders, production data and planning from mobile devices.

Applications

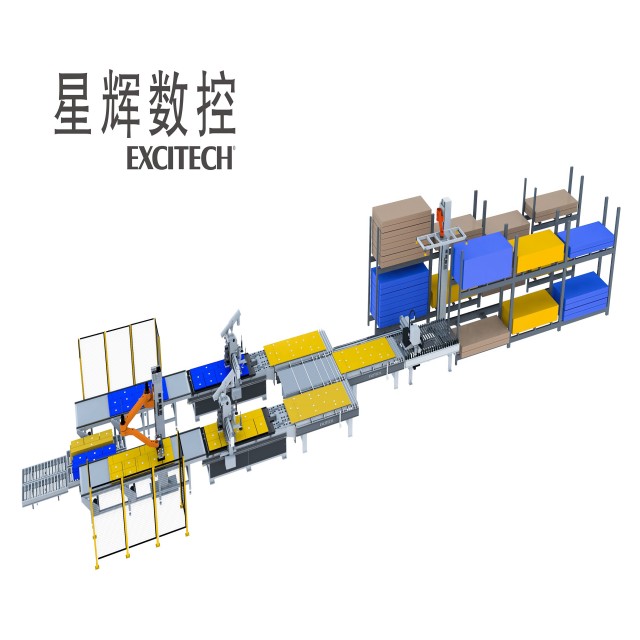

Smart factory and unmanned production lines for cabinet, wardrobe and panel furniture manufacturers; raw panel storage and sequencing supply; temporary storage, sorting, sequencing and batching of small parts (parts 5cm and above processed automatically); integration with CNC nesting cells, edge banding cells and drilling cells.

Specifications

Item    Parameter

Series    Vertical Storage (High-bay) / Vertical Raw Material Warehouse / Panel Storage / Vertical Sorting Unit / Horizontal Sorting Unit

Model    Customized per project; configurations per technical agreement

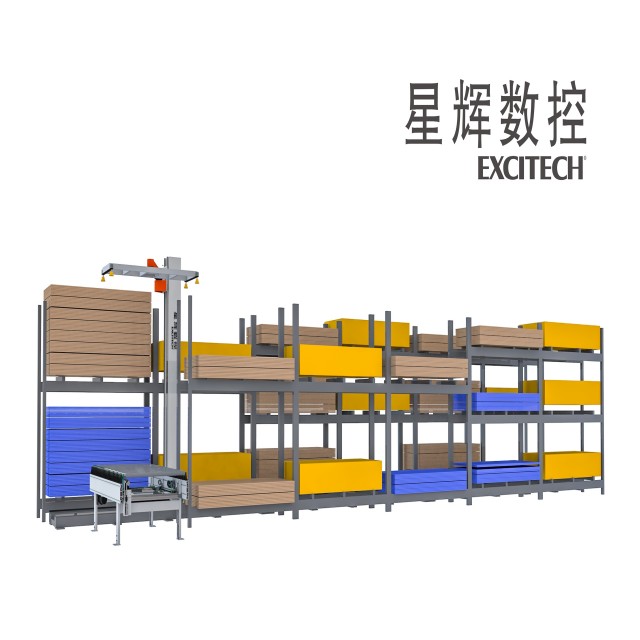

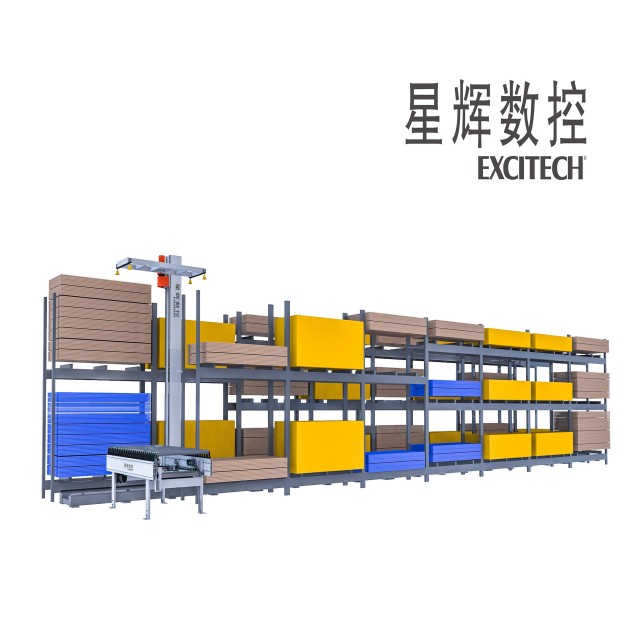

Vertical Raw Material Warehouse Length    12 / 18 / 24 / 30 m

High-bay Vertical Storage Dimension    Length 12-45 m; Width 6-12 m

Integration    RGV / AGV guided vehicles; CNC nesting cell; edge banding cell; drilling cell (intelligent integration)

Control System    EXCITECH Central Control / MES (Excitech Manufacturing Execution System)

Stock Management    Real-time stock status and reports; shipping and receiving management

Operation    Quick and accurate in/out storage; switchable pallet assembly and panel warehousing by order

Sorting    Available in vertical and horizontal styles; robot pick-up and transportation, efficient and error-free

Competitive Advantage

• Unstaffed panel supply: RGV/AGV + vertical storage supports customized batch production with automated material feeding.
• Lean warehousing: simple, quick and accurate in/out storage with real-time stock updates.
• Seamless material flow: connects the raw material end with the machine end under visualized management.
• Order-based flexibility: switches between pallet assembly and panel warehousing to match production takt.
• Efficient sorting: vertical and horizontal sorting units suit multi-spec, high-frequency, flexible production; robot pick-up and transportation is efficient and error-free.
• Smart factory ready: integrates with EXCITECH MES central control for real-time machine, order and production data monitoring.
