Edgebander Machinery work is an important process in the manufacture of panel furniture. The quality of the edge banding directly affects the quality, price and grade of the product.
Edgebander Machinery
1.Edgebander Machine Introduction

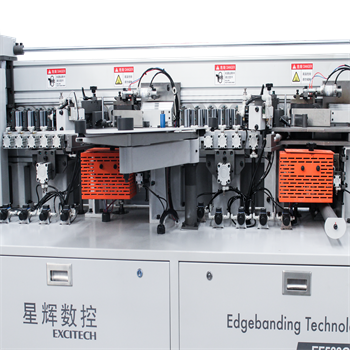

EF583GI edgebander is a kind of high efficiency machine with double glue pots to quickly switch between colors and to achieve invisible joint.
2.Edgebander Machine Parameter (Specification)
Series |
Dimension |
Power |
Working Speed |
Panel thickness |
Min Workpiece |
Edge thickness |
Edge Width |
Workpiece Length |
Workpiece Width |
583PLUS |
7740*1800*980 |
18kW |
20-26m/min |
10-60mm |
60*150mm |
0.4-3mm |
16-65mm |
Min.150mm |
Min.60mm |
583GIM |
9870*1800*980 |
27.5kW |
18-24m/min |
10-60mm |
60*150mm |
0.4-3mm |
16-65mm |
Min.150mm |
Min.60mm |
583GM |
9720*1800*980 |
26.5kW |
|||||||
583GI |
8950*1800*980 |
26kW |
|||||||
583G |
8800*1800*980 |
25kW |
|||||||
583 |
7040*1800*980 |
16kW |
|||||||
582 |
6400*1800*980 |
12kW |
|||||||
581 |
5810*1800*980 |
15.5kW |
|||||||
580 |
5110*1800*980 |
11kW |
3.Edgebander Machine Feature And Application
■ EF583GI edgebander is a kind of high efficiency machine with the following functions,Pre Milling→Gluing→Pressing1→Melt2→Pressing2→End trimming→Rough trimming→Fine trimming→ Corner trimming→Scraping→Buffing1→Buffing2.
■ EF583GI edgebander with top(hotmelt) and bottom glue pots,top pre-melter reduces heating time and increases the quality of edge banding.
■ Double Rail end trimming ensures edge more stable and faster.
4.Edgebander Machine Details
——Pre Milling——
EF583GI edgebander with top(hotmelt) and bottom glue pots equipped with diamond tools for better cut and longer use.

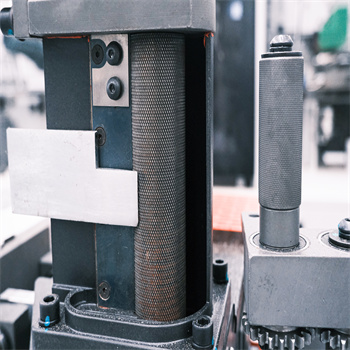

——Pressing——
——End trimming——
——Rough and fine trimming——
——Corner Trimming——
——Scraping——
——Buffing——

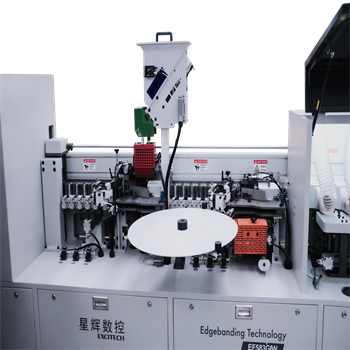

——Top and Bottom glue pot——
—— Different Glue Application System Available——
PUR Hotmelt For water resistant application Optically invisible joints Perfect finish as a matter of course |
|

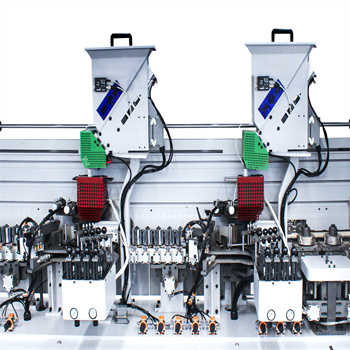

Double Glue Reservoirs Two glue reservoirs to quickly switch between colors and to achieve invisible joint |
|

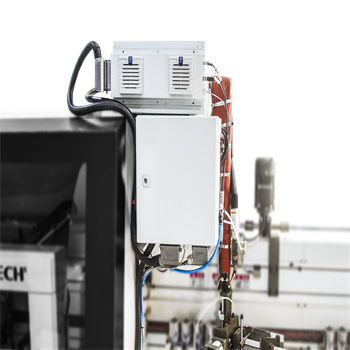

Hotmelt Device/Top Melt/Bottom Melt Optional Top pre-melter reduces heating time and increases the quality of edge banding. |
|
Hot Air Edgebanding Technology Zero glue line,Minimum heating time required,water-resistant,saving the trouble of cleaning the glue pots |
|
——Various Customers Benefiting from EXCITECH edgebander technology——
5.Edgebander Machine Qualification
Production Facility

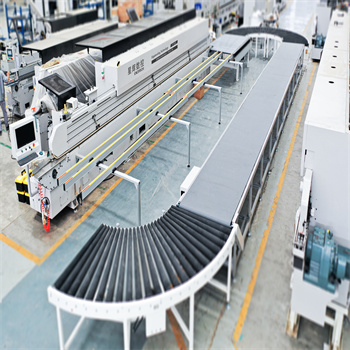

Picture taken at customer's factory
In-house machining facility
Quality control and testing
EF583GI edgebander with top(hotmelt) and bottom glue pots in Our Partners’Factories
Honors
1 |
Award for
International Registration of Trademark |
2 |
China Famous
Brand |
3 |
National Top 10
Well-Known CNC Manufacturer |
4 |
UL、CE、EAC、CSA 、ISO Certificate and So on... |
6.Deliver,Shipping And Serving
Shipping
The EF583GI edgebander with top(hotmelt) and bottom glue pots is packed with anti-rust plastic film for cleaning and damp proofing.
Fasten EF583GI edgebander with top(hotmelt) and bottom glue pots on the plywood pallet for safety and against clashing.
Port
Qingdao Port / Tianjin Port / Shanghai / As appointed
Service
■ From your first inquiries about our machine to close the deal to installation to technical support and maintenance, our team will be always with you.
■ Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the world , around the clock.
■ No matter whether the machine is used in North America or Africa, we can run diagnostics via dial-in on any of our computer-equipped machines for troubleshooting and correct controller settings to have you running again in a minute.
7.FAQ
1. What is the difference between the EF583GI and EF583G edge banding machine?
Answer:EF583GI with one top(Hotmelt) and bottom glue pots,EF583G with double bottom glue pots.
2. Advantages of one top(Hotmelt)+bottom glue pots?
Answer: It is conducive to installing PUR device later.
