Edgebander With Rough And Fine Trimming is an easy operation edge banding technology with Rough and Fine trimming.
Edgebander With Rough And Fine Trimming
1.Edgebander With Rough And Fine Trimming Introduction

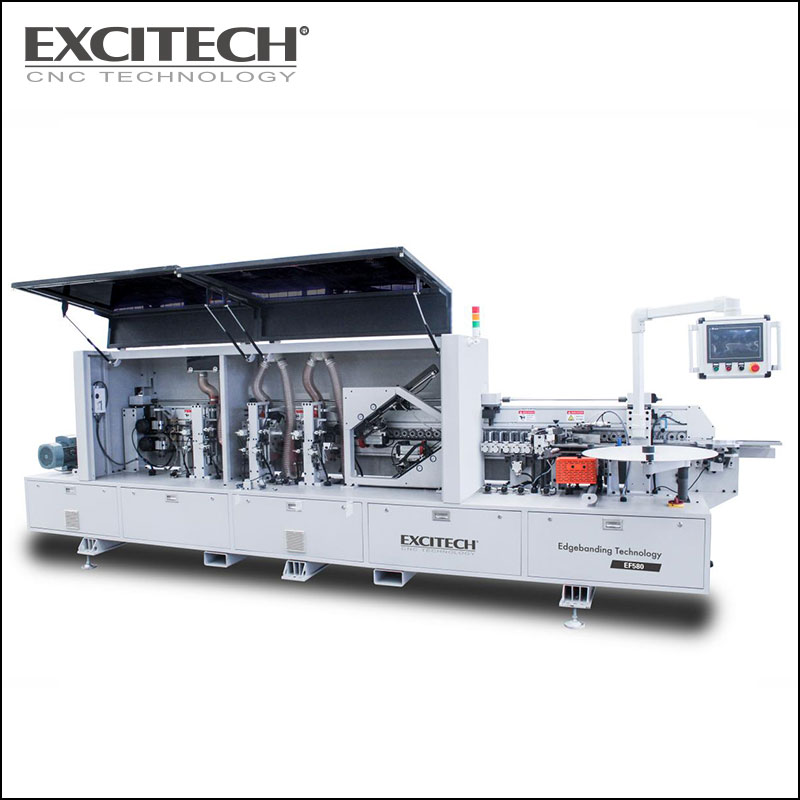

EF580 Edgebander is an easy operation edge banding technology with Rough and Fine trimming,it’s suitable for start-up businesses or small scale operations
2.Edgebander With Rough And Fine Trimming Parameter (Specification)
Series |
Dimension |
Power |
Working Speed |
Panel thickness |
Min Workpiece |
Edge thickness |
Edge Width |
Workpiece Length |
Workpiece Width |
583PLUS |
7740*1800*980 |
18kW |
20-26m/min |
10-60mm |
60*150mm |
0.4-3mm |
16-65mm |
Min.150mm |
Min.60mm |
583GIM |
9870*1800*980 |
27.5kW |
18-24m/min |
10-60mm |
60*150mm |
0.4-3mm |
16-65mm |
Min.150mm |
Min.60mm |
583GM |
9720*1800*980 |
26.5kW |
|||||||
583GI |
8950*1800*980 |
26kW |
|||||||
583G |
8800*1800*980 |
25kW |
|||||||
583 |
7040*1800*980 |
16kW |
|||||||
582 |
6400*1800*980 |
12kW |
|||||||
581 |
5810*1800*980 |
15.5kW |
|||||||
580 |
5110*1800*980 |
11kW |
3.Edgebander With Rough And Fine Trimming Feature And Application
EF580 Edgebander with rough and fine trimming is an easy operation edge banding technology with the following functions,Gluing→Pressing1→End trimming→Rough trimming→Fine trimming→Buffing.Double Rail end trimming ensures edge more stable and faster.
4.Edgebander With Rough And Fine Trimming Details
——Pressing——
EF580 edgebander with Rough and Fine trimming with six roller to make sure the edge is pressed seamlessly to the work piece.
——End trimming——
——Rough and fine trimming——
——Scraping——
——Buffing——
——Different Glue Application System Available——
PUR Hotmelt For water resistant application Optically invisible joints Perfect finish as a matter of course |
|
Double Glue Reservoirs Two glue reservoirs to quickly switch between colors and to achieve invisible joint |
|
Hotmelt Device/Top Melt/Bottom Melt Optional Top pre-melter reduces heating time and increases the quality of edge banding. |
|
Hot Air Edgebanding Technology Zero glue line,Minimum heating time required,water-resistant,saving the trouble of cleaning the glue pots |
|
——Various Customers Benefiting from EXCITECH edgebander technology——
5.Edgebander With Rough And Fine Trimming Qualification
Production Facility
Picture taken at customer's factory
In-house machining facility
Quality control and testing
EF580 edgebander with Rough and Fine Trimming in Our Partners’Factories
Honors
1 |
Award for
International Registration of Trademark |
2 |
China Famous
Brand |
3 |
National Top 10
Well-Known CNC Manufacturer |
4 |
UL、CE、EAC、CSA 、ISO Certificate and So on... |
6.Deliver,Shipping And Serving
Shipping
The EF580 edgebander with Rough and Fine trimming is packed with anti-rust plastic film for cleaning and damp proofing.
Fasten EF580 edgebander with Rough and Fine trimming on the plywood pallet for safety and against clashing.
Port
Qingdao Port / Tianjin Port / Shanghai / As appointed
Service
■ From your first inquiries about our machine to close the deal to installation to technical support and maintenance, our team will be always with you.
■ Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the world , around the clock.
■ No matter whether the machine is used in North America or Africa, we can run diagnostics via dial-in on any of our computer-equipped machines for troubleshooting and correct controller settings to have you running again in a minute.
7.FAQ
1. What are the advantages of this machine?
Answer: Small dimension,economical price.
2. Installation and Training service
Answer: Excitech has experienced English after-sales engineers who can go abroad to help customers install and train machines.You can also dispatch your staff to EXCITECH for training.
3. How is your after-sales service?
Answer: Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the wold , around the clock.
