Wooden Furniture CNC Six Sided Drilling Router

Wooden furniture cnc six sided drilling router

Product Description

Six-sided drilling machine is mainly used for horizontal,vertical drilling and slotting in various types of artificial panels, with small power spindle for slotting, solid wood panels, etc. Simple operation, fast drilling processing speed, with small spindle slotting, it is suitable for processing all kinds of modular cabinet-type furniture. Six-sided drilling machine can fix the work piece in one clamping and multi-face machining. It simplifies the overall machining process of the work piece, simplifies the process, improves the machining efficiency. It has also completely solved the problem that the complicated work piece needs the error caused by multiple clamping, which reduces the work difference and improves the machining precision.

Feature:

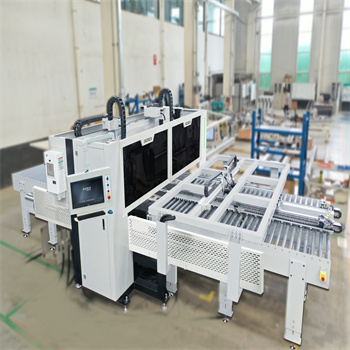

• Six-sided drilling machine with bridge structure processes six sides in a single cycle.
• Double adjustable grippers hold the work piece firmly despite their length.

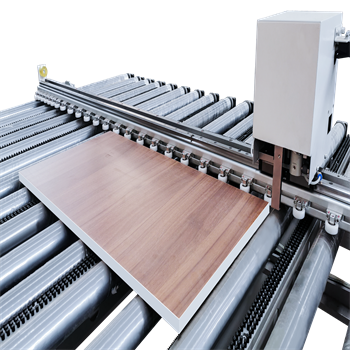

• Air table reduces friction and protects the delicate surface.

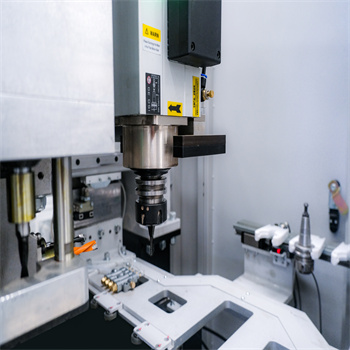

• The head is configured with vertical drill bits, horizontal drill bits, saws and spindle so the machine could perform multiple jobs.

series	1224
traveling size	4800*2630*150mm
Max.working size	2800*1200*50mm
min. working size	200*30*15mm
net weight	5000KG
traveling speed	130/80/30m/min
drill bank info.	Vertical42+Horizontal16
splindle info.	3.5kw*4
table structure	Air table clamps
power	26KW
dust extraction info.	Θ200*2 Θ150*2
