Single Arm PTP MDF CNC Drilling Woodworking Center
  • Single Arm PTP MDF CNC Drilling Woodworking CenterSingle Arm PTP MDF CNC Drilling Woodworking Center
  • Single Arm PTP MDF CNC Drilling Woodworking CenterSingle Arm PTP MDF CNC Drilling Woodworking Center
  • Single Arm PTP MDF CNC Drilling Woodworking CenterSingle Arm PTP MDF CNC Drilling Woodworking Center
  • Single Arm PTP MDF CNC Drilling Woodworking CenterSingle Arm PTP MDF CNC Drilling Woodworking Center

Single Arm PTP MDF CNC Drilling Woodworking Center

Singhui is a professional leader China Single Arm PTP MDF CNC Drilling Woodworking Center manufacturers with high quality and reasonable price. Welcome to contact us.

Model:E6-PTP

Send Inquiry

Product Description


Excitech is a professional leader China Single Arm PTP MDF CNC Drilling Woodworking Center manufacturers with high quality and reasonable price.

Welcome to contact us.

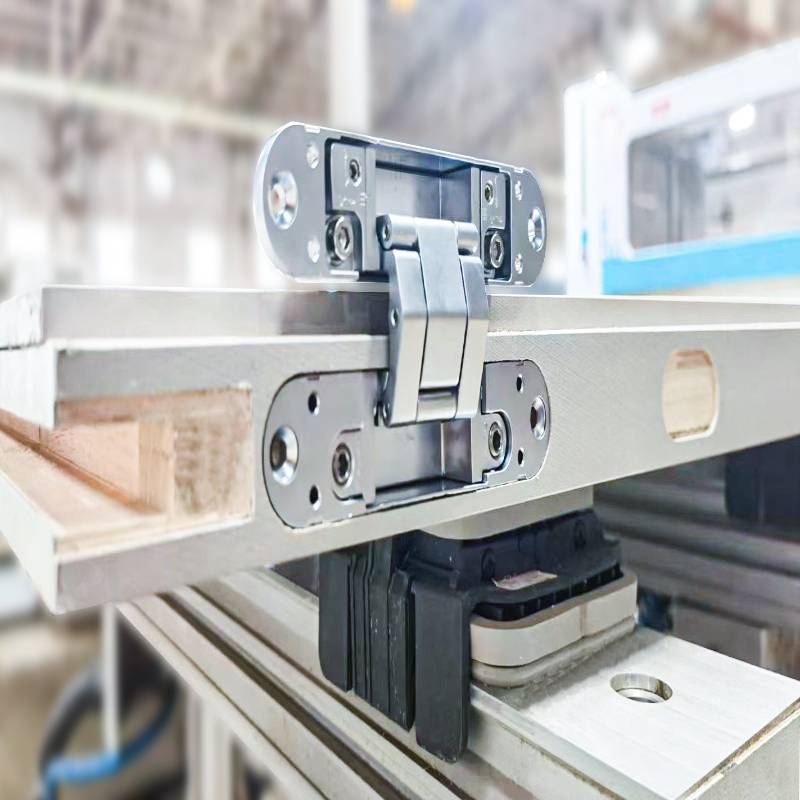

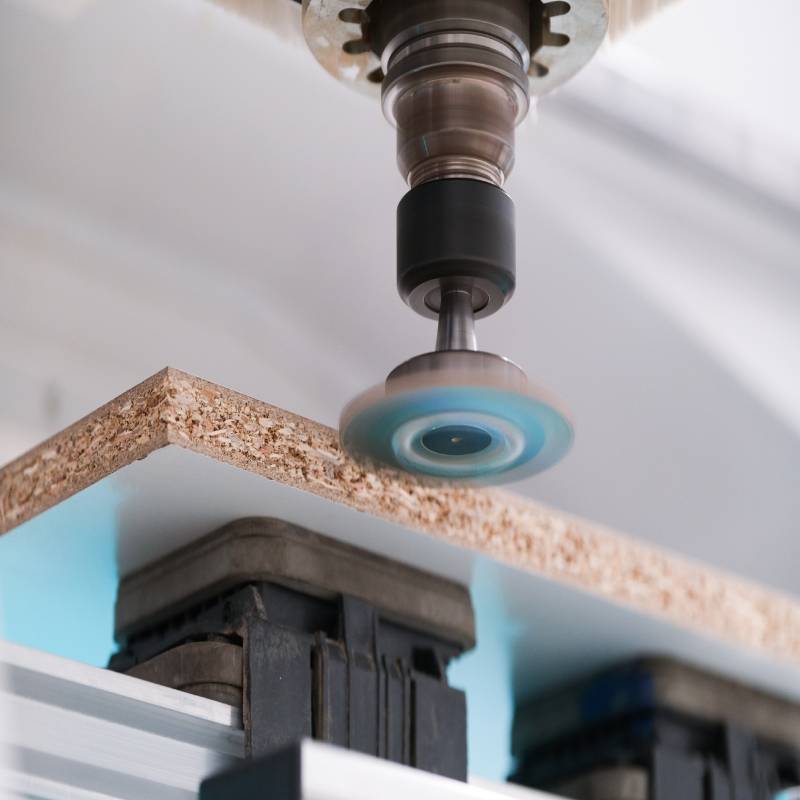

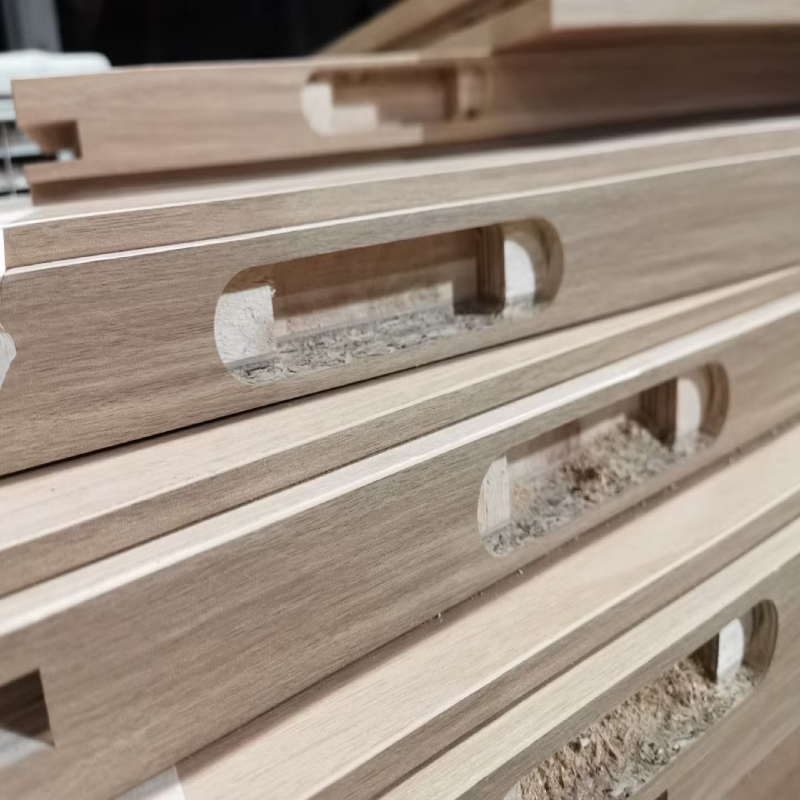

The machine is designed to meet diverse complicated processing requirements, highly versatile with routing, drilling, cutting, side milling, sawing and other functions. At the same time, the machine is also equipped with 8-slots carousel tool changer, tool changes to be performed within 8 seconds. Vacuum table fitted with suction cups. Cropping the full sheet to your ideal size, routing, drilling, sawing, cutting, and milling—multiple functions, all in one. Easy for loading and unloading, spend less time but get more out of it.

Technical Parameter



Series

E6-1230D

E6-1252D

Travelling size

3400*1640*250mm

5550*1640*250mm

Working size

3060*1260*100mm

5200*1200mm

Table size

3060*1200mm

5200*1200mm

Transmission

X Y rack and pinion drive , Z ball screw drive,

Table structure

Pods and rails

Spindle power

9.6 / 12KW HSD

Spindle speed

24000r/min

Travelling speed

80m/min

Working speed

20m/min

Tool magazine

Carousel 8 slots

Drill bank configuration

9 vertical+ 6 horizontal+ 1 saw blade

Driving system

Yaskawa

Controller

OSAI/ Syntec

Voltage

AC 380/ 3P/ 50HZ





Service

■  From your first inquiries about our machine to close the deal to installation to technical support and maintenance, our team will be always with you.

■  Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the world , around the clock.

■  No matter whether the machine is used in North America or Africa, we can run diagnostics via dial-in on any of our computer-equipped machines for troubleshooting and correct controller settings to have you running again in a minute.


6.FAQ

1. How long is the machine warranty period? ?

Answer:EXCITECH offers 12 months warranty for service issue that are not caused by operator's errors. Service and support are available throughout the service life of a machine at fair and reasonable costs after warranty expires.



2. How is your after-sales service?

Answer:Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the wold , around the clock.



3. Where is your factory located?

Answer:Shandong and Guangdong. For more information, please refer to ABOUT US.



4. Are you a trading company or a manufacturer?

Answer: Excitech is a professional machinery manufacturing company. For more information, please refer to ABOUT US.
