As the professional manufacturers, Singhui would like to provide you PTP Door CNC Cutting Carving Drilling Working Center. And we will offer you the best after-sale service and timely delivery.
PTP Door CNC Cutting Carving Drilling Working Center
The machine is designed to meet diverse complicated processing requirements, highly versatile with routing, drilling, cutting, side milling, sawing and other functions.
Product Description
The machine is designed to meet diverse complicated processing requirements, highly versatile with routing, drilling, cutting, side milling, sawing and other functions. Vacuum table fitted with suction cups. Cropping the full sheet to your ideal size, routing, drilling, sawing, cutting, and milling—multiple functions, all in one. Easy for loading and unloading, spend less time but get more out of it.
Technical Parameter
Series | E3-0924 | E3-0930 |
Travelling size | 1310*2720*160mm | 1310*3330*160mm |
Working size | 900*2440*80mm | 900*3050*80mm |
Table size | 900*2440mm | 900*3050mm |
Transmission | X Y rack and pinion drive , Z ball screw drive | |
Table structure | Pods and rails | |
Spindle power | 5.5 KW | |
Spindle speed | 18000r/min | |
Travelling speed | 60m/min | |
Working speed | 20m/min | |
Drill bank configuration | 9 vertical+ 6 horizontal+ 1 saw blade | |
Driving system | Yaskawa | |
Controller | OSAI | |
Voltage | AC380/ 3P/ 50HZ |
Detailed Images

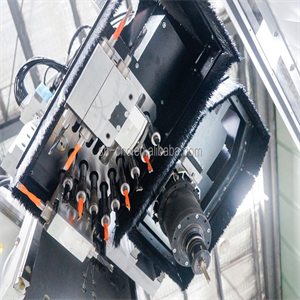

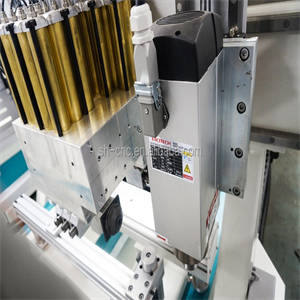

1. Chinese spindle with boring unit
The machine adopts Chinese air cooling spindle with Italy imported drills, including 9 vertical drills, 6 horizontal drills and 1 saw blade drill, which can meet more processing requirements of users.

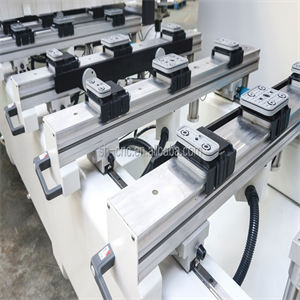

2. Double station operating area
The machine is equipped with a double-station operating area, equipped with 18 pieces of German Schmitz vacuum adsorption blocks and 2 rows of positioning cylinders. It can be used for full-page adsorption and point-to-point adsorption. Easy for loading and unloading, spend less time.
