EXCITECH Nesting Cell: Vision‑Guided Robotic Loading, Labeling and Offloading‑Stacking for Cabinet Shops

EXCITECH integrated nesting cell features robotic loading with precision labeling, dust‑free nesting, vision‑guided offloading and stacking. In‑house‑developed vision algorithms detect and correct panel misalignments for compact‑footprint, high‑throughput cabinet‑processing workflows.

Many custom cabinetmakers and cabinet manufacturers face persistent shop‑floor pain‑points: labor‑intensive manual handling of nested panels, inconsistent stacking quality, scratched high‑grade sheet goods, and large floor‑space requirements for separate material‑handling stations. Conventional robotic nesting setups often struggle with misaligned panels from mixed‑order batch‑size‑one production, creating jams, part damage and unplanned downtime.

To address those real‑world workshop challenges, EXCITECH delivers an integrated nesting cell paired with a vision‑equipped stacking robot. This unified production‑cell combines robotic loading, precision labeling, dust‑free nesting, and vision‑guided offloading‑stacking within a reduced footprint, built for job‑shops running mixed custom cabinetry orders.

System Workflow & Core Capabilities

The complete cell runs a continuous automated sequence for sheet‑goods processing:

1. Robotic Loading with Precision Labeling

The robotic unit handles raw sheet‑goods and applies precise part labels before CNC nesting routing. Every panel receives traceable identification, supporting downstream processing for custom cabinetry and architectural millwork jobs.

2. Dust‑Free Nesting Routing

Inside the cell, the CNC nesting router executes cutting, grooving and machining tasks within an enclosed dust‑free working environment. Effective dust collection helps protect high‑value TFL (melamine), MDF and high‑gloss panels from surface scratches and contamination, lowering ongoing workshop cleaning workload.

3. Vision‑Guided Robot Offloading & Stacking

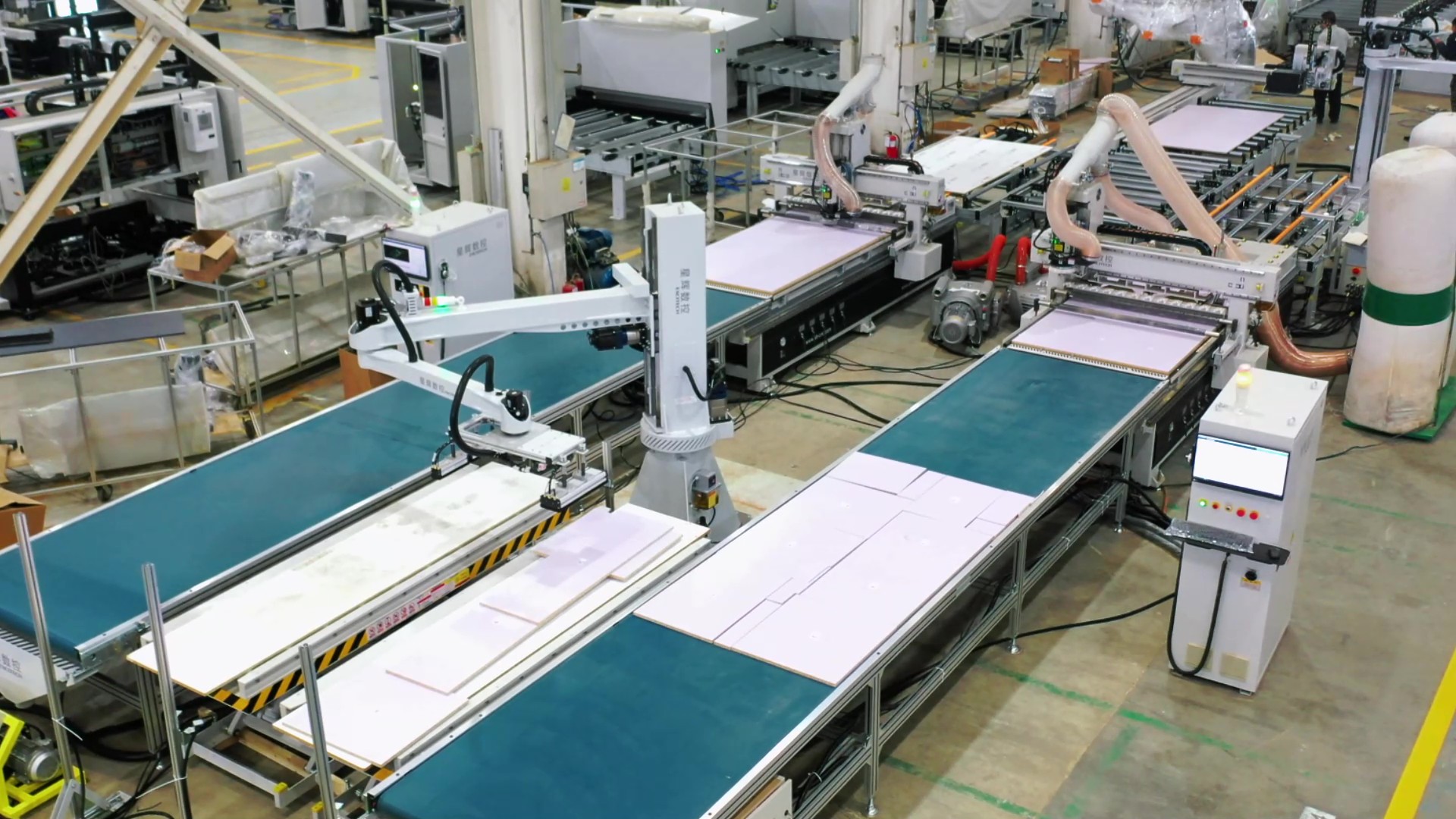

After nesting completes, the stacking robot with integrated vision camera takes over finished‑part handling. Powered by in‑house‑developed algorithms, the vision system brings predictable order out of chaotic mixed‑size part stacks. The camera actively detects panel misalignments during offloading and applies real‑time positional corrections. This capability minimizes panel collisions, reduces part‑scratch risks and stabilizes stacking quality even for highly variable batch‑size‑one orders.

Key practical advantage: All loading, labeling, nesting, offloading and stacking functions are consolidated into one production cell. Shops gain greater output without expanding valuable floor area.

Business Benefits for Cabinet Manufacturers

Reduced footprint: Combined robotic material‑handling eliminates multiple standalone manual stations; enables automation retrofit for existing shops with limited available space.

Maximize uptime: Vision‑driven misalignment correction lowers jams and unplanned stops, critical for high‑mix custom‑order environments.

Consistent part traceability: Precision labeling at the loading stage keeps every nested panel identifiable through downstream edgebanding, boring and packaging steps.

Batch‑size‑one readiness: In‑house stacking algorithms reliably manage constantly changing panel dimensions typical for custom cabinet and closet‑production workflows.

Modular concept: Operates as a self‑contained nesting production‑cell today; can connect to additional downstream equipment as a shop expands production capacity over time.

Ideal Applications

This integrated nesting cell is engineered for custom cabinetmakers, cabinet manufacturers and architectural millwork operations that want to boost throughput while cutting manual material‑handling labor. It suits both new‑shop builds and retrofits for existing facilities where floor‑space is constrained.

For trade professionals seeking detailed performance data, spec‑sheets or demonstration footage, submit a request for quote via EXCITECH official website.

Contact Way

Email:export@excitechcnc.com WhatsApp: 186 5319 8309

About EXCITECH

EXCITECH designs and manufactures CNC wood‑processing machinery and modular production‑cell solutions, supporting custom cabinetmakers, closet producers and architectural millwork operations in global markets.
