Nesting With Automatic Pre-labeling
  • Nesting With Automatic Pre-labelingNesting With Automatic Pre-labeling

Nesting With Automatic Pre-labeling

Nesting With Automatic Pre-labeling is a high efficiency automated nesting solution with automatic loading and unloading system.

Send Inquiry

Product Description

Nesting With Automatic Pre-labeling


1.Nesting With Automatic Pre-labeling Introduction

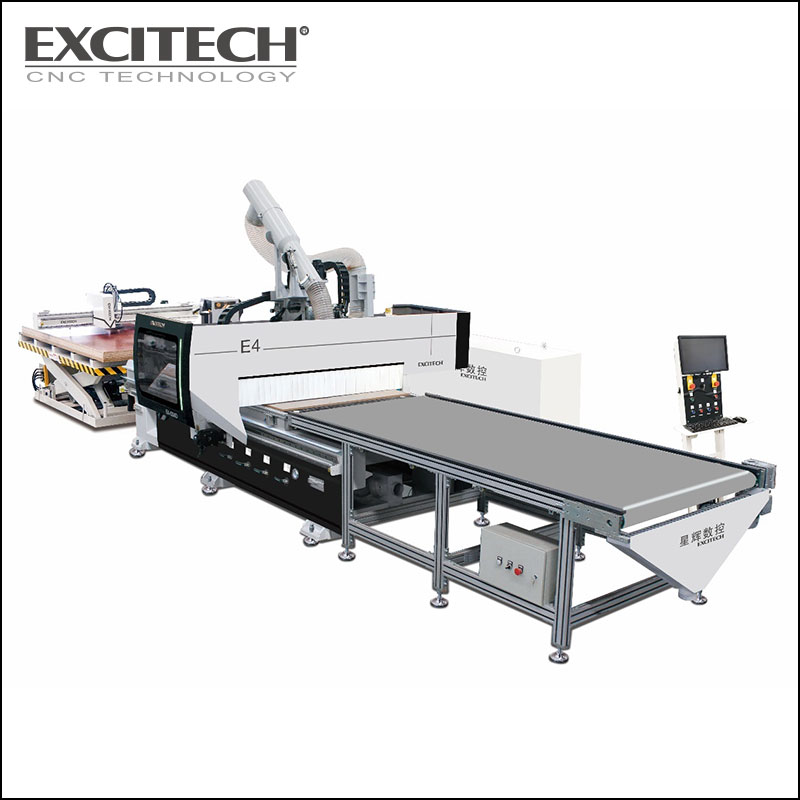

E4 Nesting Machine is a high efficiency automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which facilitate maximum productivity and zero down time.



2.Nesting With Automatic Pre-labeling Parameter (Specification)

Series

Traveling Size

Working Size

Traveling Speed

Working Speed

Spindle Info.

Tool Magazine

Table Structure

Power

1224

2500*1260*200

2440*1220*70

80m/min

25m/min

9kw

Carousel 8

Vacuum table

30kw

1230

3140*1260*200

3050*1220*70

1530

3140*1600*200

3074*1550*70

1537

3700*1600*200

3685*1550*70

2128

2900*2160*200

2850*2130*70

35kw

2138

3860*2170*200

3800*2130*70



3.Nesting With Automatic Pre-labeling Feature And Application

  E4 Nesting Machine is a kind of high efficiency automated nesting solution with automatic loading and unloading system. Top of its range, this solution has the great advantage of not requiring the constant presence of an operator. The suction cups equipped on the gantry travels to the rear of the machine to pick up the work piece from the scissor lift, which is then nested and drilled at the flat table. At the completion of the work cycle, the pusher transports the completed work piece out of the working area allowing simultaneous loading the next cycle.

  World‘s first class components--Italian high-frequency electric spindle, controller system and drill bank, German helical rack and pinion drives, Japanese self-lubricating and dust-proof square linear guides and high precision planetary gear reducers, etc.

  Truly versatile--nesting, routering, vertical drilling and engraving all in one.It is well-suited for panel furniture, office furniture, cabinets production,etc..



4.Nesting With Automatic Pre-labeling Details

——High-power Spindle——

Enable the E4 nesting machine to process different materials


——Automatic Pre-labeling——



——Auto Positioning——


——Automatic Pusher Device——


——Vacuum Table——


——Carousel Tool Changer——


——Powerful Vacuum Pump——



——Optional 5+4 Drilling Bank——


——Optional Self-lubricate system——



——Optional Double Work Zone——


——Software and Hardware Integration Solution——

Nesting Cell


5.Nesting With Automatic Pre-labeling Qualification

Production Facility



Picture taken at customer's factory


In-house machining facility


Quality control and testing


E4 Nesting Machinein Our Partners’ Factories


Honors

1

Award for International Registration of Trademark
Jinan Innovative Enterprise......

2

China Famous Brand
Shandong Famous Trademark
Jinan Famous Brand...

3

National Top 10 Well-Known CNC Manufacturer
Certificate for National Hi-Tech Enterprise...

4

UL、CE、EAC、CSA 、ISO Certificate and So on...



6.Deliver,Shipping And Serving



Shipping

The CNC nesting machine is packed with anti-rust plastic film for cleaning and damp proofing.

Fasten CNC nesting machine on the plywood pallet for safety and against clashing.



Port

Qingdao Port / Tianjin Port / Shanghai / As appointed



Service

  From your first inquiries about our machine to close the deal to installation to technical support and maintenance, our team will be always with you.

  Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the world , around the clock.

  No matter whether the machine is used in North America or Africa, we can run diagnostics via dial-in on any of our computer-equipped machines for troubleshooting and correct controller settings to have you running again in a minute.


7.FAQ

1. What accessories and functions can be used for nesting machine?

Answer:Nesting Series options

Series

E4

E3

E2-9

E2-C

E2-4

Cabinet & Flat door

Optional

Optional

Optional

Optional

Optional

Molded door

Optional

Optional

/

Optional

/

Auto tool changer

Standard

Standard

/

Standard

/

High power spindle

Standard

Standard

/

Standard

/

Pre-labeling

Optional

Optional

/

/

/

In-feed and out-feed

Optional

Optional

Optional

Optional

Optional

Double work zone

Optional

Optional

Optional

Optional

Optional

Drill bank

Optional

Optional

/

Optional

/

Compression roller

Optional

Optional

Optional

/

Optional

Vertical saw

Optional

Optional

/

Optional

/



2. What is the difference between the different structures of nesting machine?

Answer:

Standard

Standard solution,small footprint

Auto loading and unloading with pre-labeling

Automatic pre-labeling,in-feed,nesting,out-feed in one cycle to enhance productivity while reducing error

Auto loading and unloading

Greatly helps reduce down time while improving productivity.

Double WorkZone

Loading and unloading on one zone without interrupting the work cycle.



3. How to choose a nesting machine and a panel saw?

Answer: The nesting machine can cut special shapes and is used in the custom furniture industry. And the panel saw can make booking cut and is used for mass production.


4. Which edge banding machine is recommended for this nesting machine?

——Recommended Matching Edgebanding Machine——

EF683GI Edgebanding Machine

Double Gluing + Pre-milling + Corner Trimming


5. What drilling machine is recommended for this nesting machine?

——Recommended Matching Drilling Machine——

EHS1224 Six Sided Drilling Machine
