An entry-level Mini Five Axis Machining Center with world top-class controller-designed for the most demanding processing requirements, maximum precision, and all-round excellence.

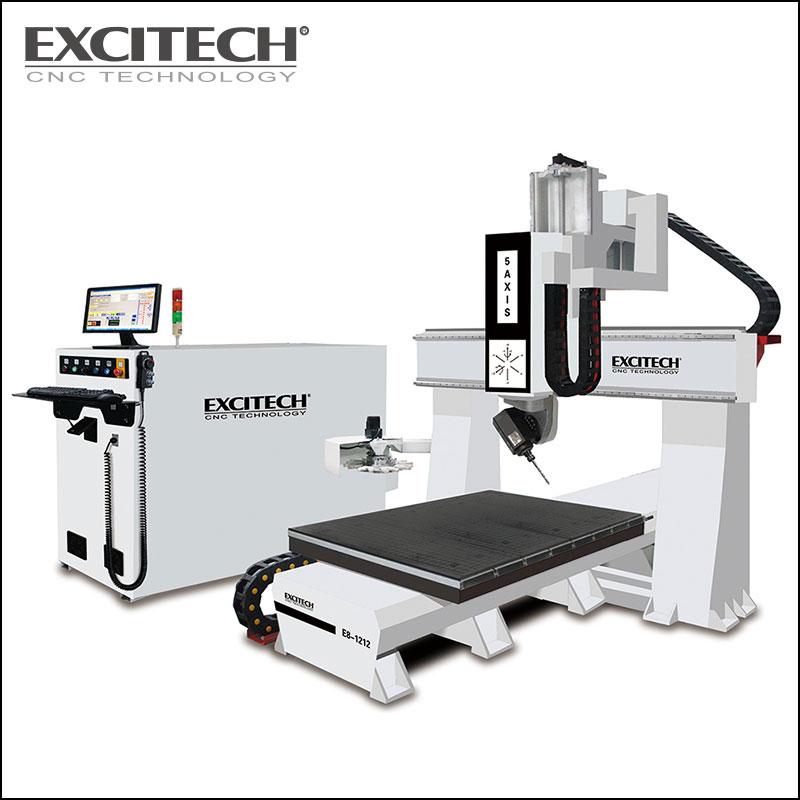

Mini Five Axis Machining Center
1.Mini Five Axis Machining Center Introduction
An entry-level E8 Series 5-Axis CNC Router with world top-class controller-designed for the most demanding processing requirements, maximum precision, and all-round excellence.CNC Router with 5 synchronizing interpolated axes; Real-Time Tool Center Point Rotation (RTCP), well suited for 3D curved surface processing.
2.Mini Five Axis Machining Center Parameter (Specification)
Series |
Traveling Size |
Working Size |
Traveling Speed |
Working Speed |
Spindle Info. |
Tool Magazine |
Table Structure |
Power |
1212 |
1720*1820*750mm |
1200*1200*500 |
60/60/20m/min |
20m/min |
8.5kw |
Carousel 8 |
Vacuum table |
18kw |
1224 |
1720*3040*750mm |
1200*2400*500 |
3.Mini Five Axis Machining Center Feature And Application
■ E8 Series 5-Axis CNC Router is featured with world first class components and strict machining procedures.
■ Twin table optional: Twin table design doubles the productive efficiency by allowing loading and unloading operations on one station without interrupting the work cycle.
■ Available for Wood ,EPS,resin,plaster,other non-metal carbon mixed compound,stone artificial stone, graphite, PVC, etc
4.Mini Five Axis Machining Center Details
——Italian 5-Axis Spindle——
E8 Series 5-Axis CNC Router with 5 Synchronizing interpolated axes
——Japan Yaskawa Servo Systems——
——Japan THK Linear Rails——
——Japan Shimpo Gear Reducer——
——Helical Rack & Pinion——
——Carousel Tool Changer——
——Italian OSAI Controller——
——Self-lubricate system——
——Optional Twin Table——
5.Mini Five Axis Machining Center Qualification
Production Facility
Picture taken at customer's factory
In-house machining facility
Quality control and testing
E8 Series 5-Axis CNC Router in Our Partners’Factories
Honors
1 |
Award for International Registration of Trademark |
2 |
China Famous Brand |
3 |
National Top 10 Well-Known CNC Manufacturer |
4 |
UL、CE、EAC、CSA、ISO Certificate and So on... |
6.Deliver,Shipping And Serving
Shipping
The E8 Series 5-Axis CNC Router is packed with anti-rust plastic film for cleaning and damp proofing.
Fasten E8 Series 5-Axis CNC Router on the plywood pallet for safety and against clashing.
Port
Qingdao Port / Tianjin Port / Shanghai / As appointed
Service
■ From your first inquiries about our machine to close the deal to installation to technical support and maintenance, our team will be always with you.
■ Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the world , around the clock.
■ No matter whether the machine is used in North America or Africa, we can run diagnostics via dial-in on any of our computer-equipped machines for troubleshooting and correct controller settings to have you running again in a minute.
7.FAQ
1. Installation and Training service
Answer:Excitech has experienced English after-sales engineers who can go abroad to help customers install and train machines.You can also dispatch your staff to EXCITECH for training.
2. What kind of material the machine could process?
Answer:Available for Wood ,EPS,resin,plaster,other non-metal carbon mixed compound,stone artificial stone, graphite, PVC, etc
3. How long is the machine warranty period?
Answer:EXCITECH offers 12 months warranty for service issue that are not caused by operator's errors. Service and support are available throughout the service life of a machine at fair and reasonable costs after warranty expires.
