Product Description
The
machine is mainly used for all kinds of density boards, shaving boards,
wood-based panels, ABS panels, PVC panels, organic glass plates and
solid wood cutting.
Feature:
-
Precision
helical rack and pinion drives ensure smooth and dynamic running even
at the highest speed, at the same time reducing noise to the miniumum.
-
Main saw motor is linked to the saws by V-ribbed belt that results in the clean precision cut.
-
Cutting is automatically adjusted to the size of the panels according to the value set-dramatically reduces the cycle time.
-
Saw blades are easy to be loaded and unloaded in an efficient manner.
-

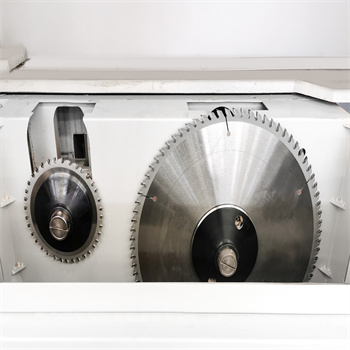

The

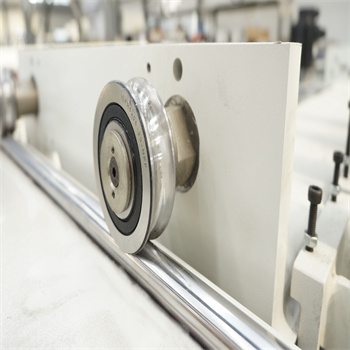

main saw and the scoring saw with electronic lift feed on the linear
guide that obtains lasting straight- line precision and rigidity and
guarantees excellent cutting finish.
Technical Parameter
Series
|
EP270
|
EP330
|
EP380
|
EP330( Rear Feeding)
|
Cutting Dimension
|
2700*2700*80/ 120 mm
|
3300*3300*80/ 120mm
|
3800*3800*80/120mm
|
3300*3300*80mm
|
Saw Carriage Speed
|
5-80m/min
|
Main Saw motor
|
15 / 18.5 kw
|
15 kw
|
Scoring Saw motor
|
2.2kw
|
Main Saw Dimension
|
380*4.4*60mm / 450*4.8*60mm
|
380*4.4*60mm
|
Scoring Saw Dimension
|
180*4.4-5.4*45mm
|
Air consumption
|
150L/min
|
Loading speed
|
|
13m/min
|
Max Feed Size
|
|
3050*1550mm
|
Max Stack Height
|
|
630/1200 mm
|
1. Heavy Frame
Heavy-duty frame ensures stable movement of the saw frame for precise sawing quality.
2. Movable air table
Air table reduces the friction to the minumun to prevent chipping and wearing of the materials.
3. The clamps
The
clamps wrapped with rubber hold the material firmly and gently. Contact
pressure adjustable to accommodate different material and deliver
invariably perfect cut quality.
Application:
Mainly used for
all kinds of density boards, shaving boards, wood-based panels, ABS
panels, PVC panels, organic glass plates and solid wood cutting.
