G60W Series Full Servo Narrow Panel Edge Banding Machine

EXCITECH G60W Series Full Servo Narrow Panel Edge Banding Machine

Narrow workpiece edge banding has long been a key difficulty in custom furniture production. EXCITECH G60W is a heavy-duty all-steel edge bander specially designed for notched panels, hinge hole bridges and narrow strips. Adopting steel rail & beam frame and servo horizontal end trimming technology, it delivers stable high-quality edge banding for complex narrow parts.

Models & Process

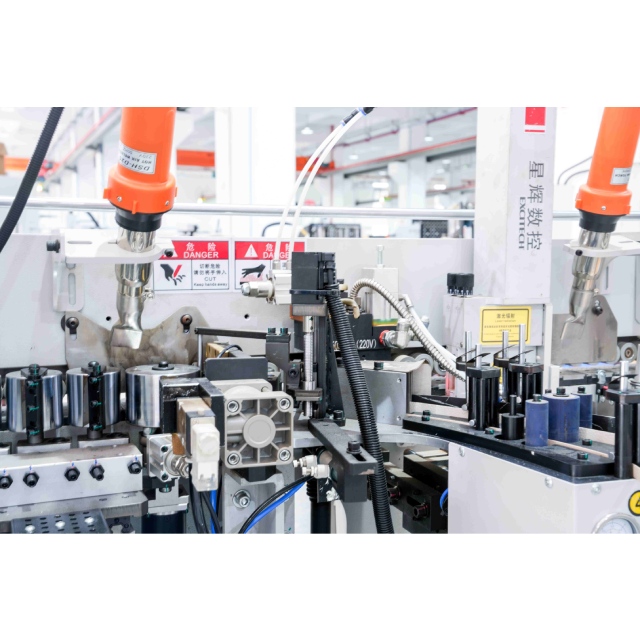

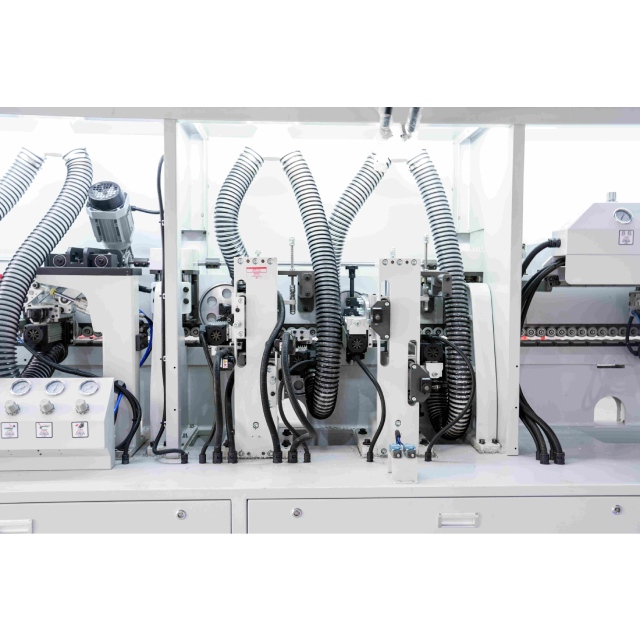

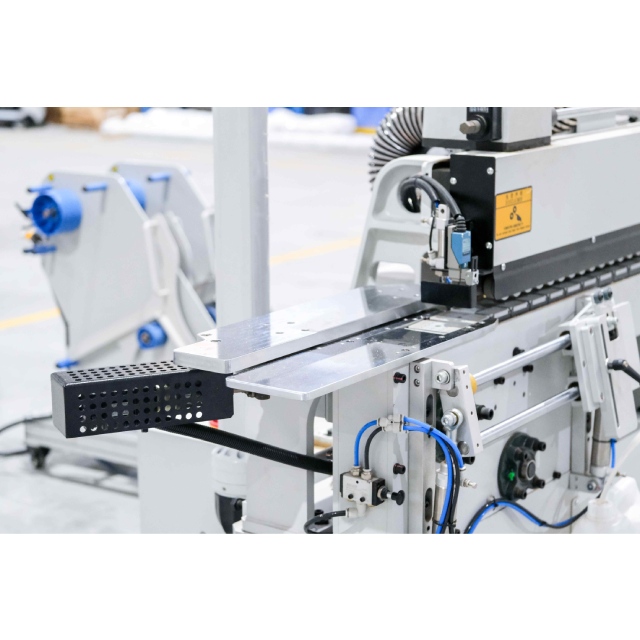

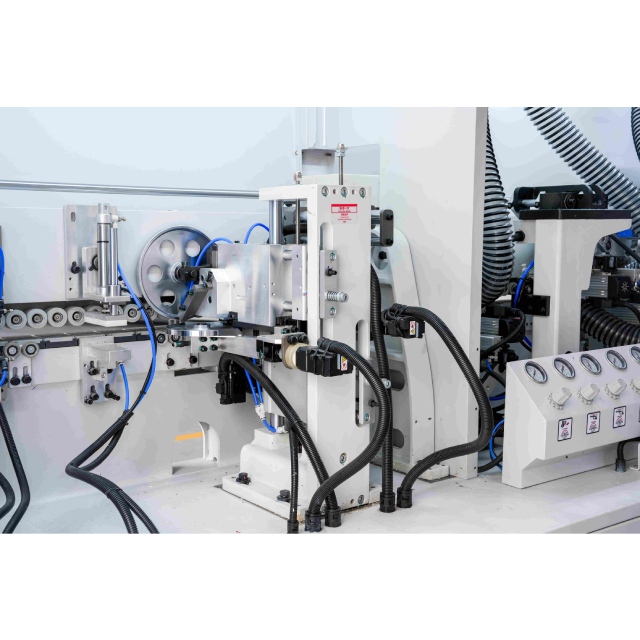

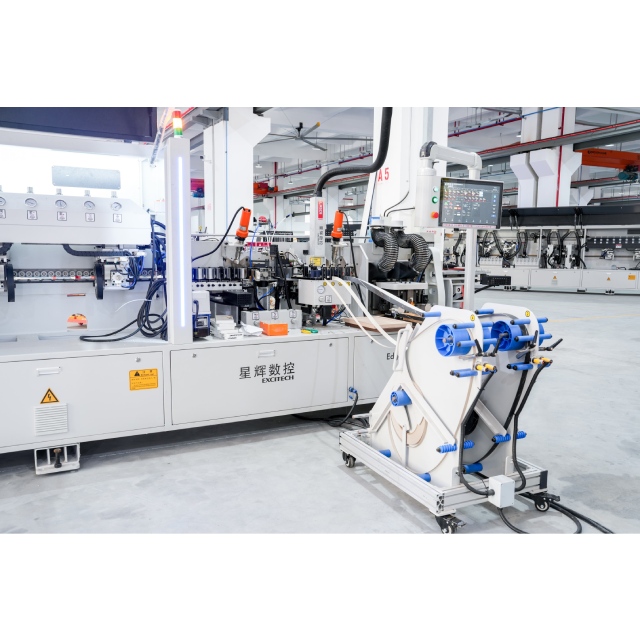

G60W Full Version: Fully automatic complete process: servo positioning fence + optional thickness detection → pre-spraying → pre-milling → hot air → 3KW laser edge banding → dual-color no-clean PUR → 4-channel servo belt feeding → servo pressing → horizontal end trimming → rough trimming → full servo fine trimming → 4-knife corner rounding → servo scraping → floating flat scraping → post-spraying → dual polishing.

G60WE Simplified Version: Retains core servo horizontal end trimming, with single-channel servo belt feeding, servo retractable fine trimming and scraping. Cost-effective for narrow part production.

Core Advantages

•    Heavy steel rail & beam bed: high rigidity and stable performance under heavy load
•    Servo horizontal end trimming: clean chip-free finish for narrow & special panels
•    3KW rectangular laser + dual-color PUR edge banding technology

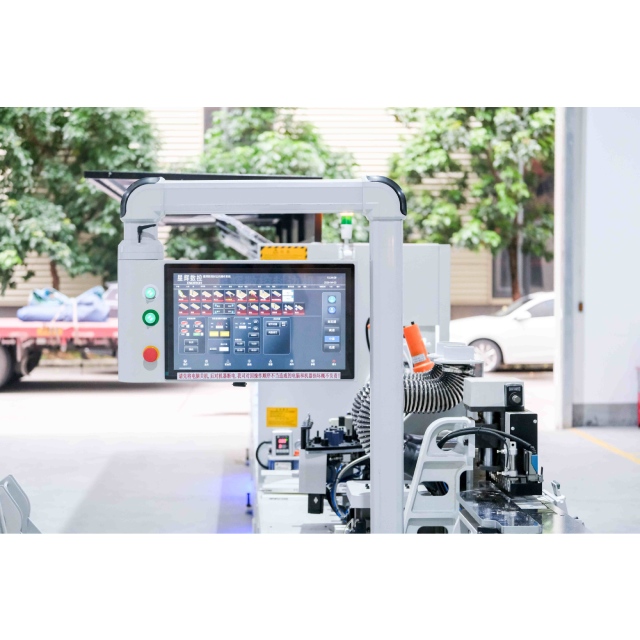

•    One-click servo tool setting, recipe storage and full servo adjustment-free control
•    Low manual intervention, fast job change and stable consistent quality

Applications

Widely used for edge banding of notched panels, hinge hole parts, narrow strips and other small workpieces in high-end custom furniture factories.
