EXCITECH Smart Factory Edgebanding Cell
  • EXCITECH Smart Factory Edgebanding CellEXCITECH Smart Factory Edgebanding Cell

EXCITECH Smart Factory Edgebanding Cell

EXCITECH Smart Factory Edgebanding Cell -- Multiple Edgebanding Machines + Feeding rollers, to increase productivity with less manpower, significantly reducing production time and making changeovers easy.

Send Inquiry

Product Description

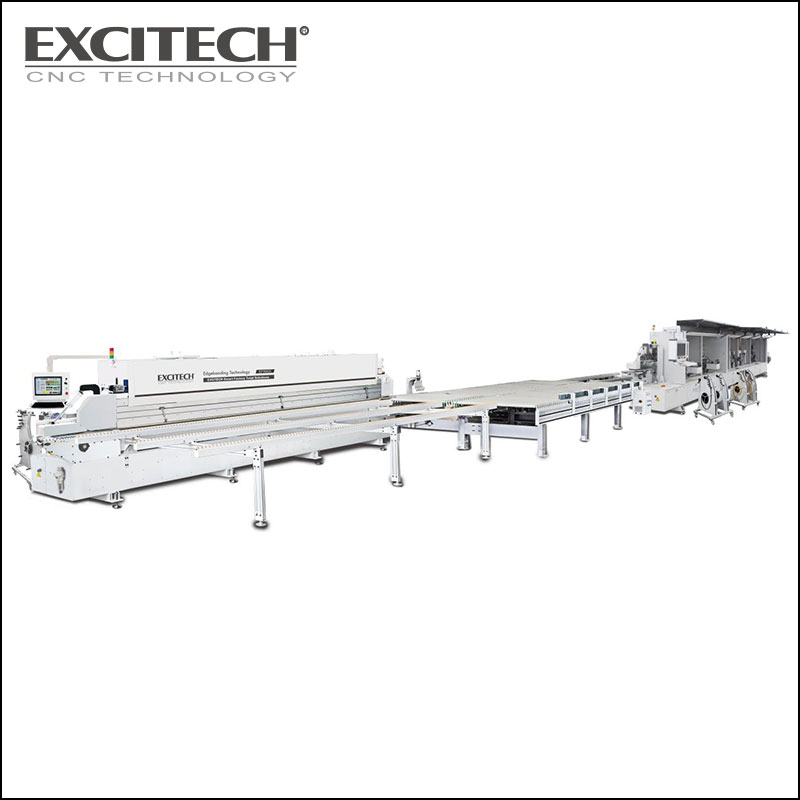

EXCITECH Smart Factory Edgebanding Cell




1.EXCITECH Smart Factory Edgebanding Cell Introduction

Multiple Edgebanding Machines + Feeding rollers compose the EXCITECH Smart Factory Edgebanding Cell for intelligent processing, with servo tape magazine to switch the color and thickness of edge band automatically , the process is accurate and swift. Return conveyors available upon request, efficient one-person operation.


2.EXCITECH Smart Factory Edgebanding Cell Parameter (Specification)

Series

Dimension

Power

Net Weight

Working Speed

Panel Thickness

Min panel size

Edge Thickness

Edge width

Min.Panel length

Min.Panel Width

Dust Extraction Info.

783GC

11400*1900*950

38KW

4800KG

20-28m/min

10-60mm

90*250mm

0.4-3mm

16-65mm

250mm

90mm

Φ98*7

781GC

9600*1900*950

37KW

4200KG

Φ98*5


3.EXCITECH Smart Factory Edgebanding Cell Feature And Application

  Multiple successfully implemented projects., various customers are benefiting from EXCITECH Smart Factory Edgebanding Cell.

  No skilled operator required for production procedures.

  Labor cost and managing overheads are therefore reduced greatly , so is production error.

  Uninterrupted production with automatic machines enables furniture maker to add extra shifts with minimum extra cost and concerns.

  Smarter, more cost efficient production, quicker delivery and better quality allow furniture makers to further expand production and sales , achieving higher return on capital and property.

  More individualized products for end-users.



4.EXCITECH Smart Factory Edgebanding Cell Details



——Double V-belt Top Pressure System——

Enable the EXCITECH Smart Factory Edgebanding Cell

 to fit the panel better and press tighter


——Pre-milling unit——

Equipped with diamond tools for better cut and longer use


——Gluing unit -Two glue reservoirs——

Two glue reservoirs to quickly switch between colors and thickness to achieve invisible joint. Top pre-melter reduces heating time and increases the quality of edgebanding


——Servo Tape Magazine——

Eight wheel tape magazine change tapes with Servo motor, accurate and swift


——6 Roller Pressure——

One big precision roller and 5 small to make sure the edge is pressed seamlessly to the work-piece.


——Double rail end trimming——



——Rough trimming & Fine trimming——


——High-speed corner trimming——

with 4 motors, this device works well with various edge thicknesses and invariably result in perfect round corner.


——R Scraping——


——Off-cut&Flat Scrapping——


——Buffing unit——


——Automatic lubricating oil——


——Auxiliary Panel support——


——Auxiliary Feeding Device——


——Feeding rollers——


——Optional  Different Glue Application Systems Available——

PUR Hotmelt & Hot Air Edgebanding Technology


——Customized solution to fit your unique requirements——


5.Product Qualification

Production Facility



Picture taken at customer's factory


In-house machining facility


Quality control and testing


EXCITECH Smart Factory Nesting Cell  in Our Partners’Factories


Honors

1

Award for International Registration of Trademark
Jinan Innovative Enterprise......

2

China Famous Brand
Shandong Famous Trademark
Jinan Famous Brand...

3

National Top 10 Well-Known CNC Manufacturer
Certificate for National Hi-Tech Enterprise...

4

UL、CE、EAC、CSA 、ISO Certificate and So on...



6.Deliver,Shipping And Serving



Shipping

The EXCITECH Smart Factory Edgebanding Cell is packed with anti-rust plastic film for cleaning and damp proofing.

Fasten EXCITECH Smart Factory Edgebanding Cell on the plywood pallet for safety and against clashing.



Port

Qingdao Port / Tianjin Port / Shanghai / As appointed



Service

  From your first inquiries about our machine to close the deal to installation to technical support and maintenance, our team will be always with you.

  Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the world , around the clock.

  No matter whether the machine is used in North America or Africa, we can run diagnostics via dial-in on any of our computer-equipped machines for troubleshooting and correct controller settings to have you running again in a minute.


7.FAQ

1. What is the minimum panel size could be on line?

Answer:250*250mm



2. I am interested in the whole plant planning, but the budget is limited at present, what is a better solution ?

Answer:Edgebanding Cell can be extended to connect to Nesting Cell, Drilling Cell, Sorting and Automatic Warehousing, to be Smart Factory Total Solution in the future. Customized solution to fit your unique requirements.


3. What information do I need to provide you for a plan?

Answer: Plant area and CAD drawing and capacity demand are essential for us to make plan.
