Singhui is Excitech EP270 CNC Panel Saw Woodworking Machine for Wood Furniture manufacturers and suppliers in China who can wholesale Excitech EP270 CNC Panel Saw Woodworking Machine for Wood Furniture. We can provide professional service and better price for you.
Singhui is Excitech EP270 CNC Panel Saw Woodworking Machine for Wood Furniture manufacturers and suppliers in China who can wholesale Excitech EP270 CNC Panel Saw Woodworking Machine for Wood Furniture. We can provide professional service and better price for you. If you interested in Excitech EP270 CNC Panel Saw Woodworking Machine for Wood Furniture products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
The machine is mainly used for all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood cutting.
Series | EP270 | EP330 | EP380 | EP330( Rear Feeding) |
Cutting Dimension | 2700*2700*80/ 120 mm | 3300*3300*80/ 120mm | 3800*3800*80/120mm | 3300*3300*80mm |
Saw Carriage Speed |
5-80m/min
|
|||
Main Saw motor | 15 / 18.5 kw | 15 kw | ||
Scoring Saw motor | 2.2kw | |||
Main Saw Dimension | 380*4.4*60mm / 450*4.8*60mm | 380*4.4*60mm | ||
Scoring Saw Dimension | 180*4.4-5.4*45mm | |||
Air consumption | 150L/min | |||
Loading speed | 13m/min | |||
Max Feed Size | 3050*1550mm | |||
Max Stack Height | 630/1200 mm |
1. Heavy Frame
Heavy-duty frame ensures stable movement of the saw frame for precise sawing quality.

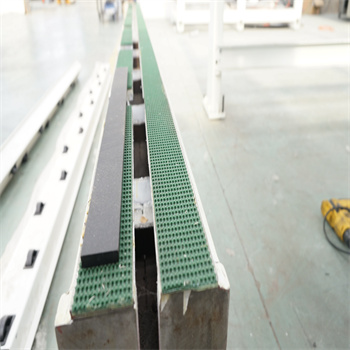

2. Movable air table
Air table reduces the friction to the minumun to prevent chipping and wearing of the materials.

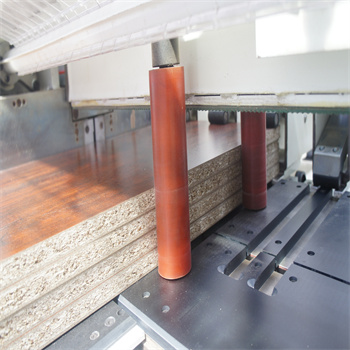

3. The clamps
The clamps wrapped with rubber hold the material firmly and gently. Contact pressure adjustable to accommodate different material and deliver invariably perfect cut quality.
4. Saw carriage
The precise and powerful movement of the servo motor driven saw carriage, along with 15kw mian saw motor guarantee a clean finish even when cutting multiple panels.
Application:
Mainly used for all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood cutting.
