EP270 cnc panel saw woodworking machine for wood furniture
Singhui is EP270 CNC Panel Saw Woodworking Machine for Wood Furniture manufacturers and suppliers in China who can wholesale EP270 CNC Panel Saw Woodworking Machine for Wood Furniture. We can provide professional service and better price for you. If you interested in EP270 CNC Panel Saw Woodworking Machine for Wood Furniture products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Product Description
The
machine is mainly used for all kinds of density boards, shaving boards,
wood-based panels, ABS panels, PVC panels, organic glass plates and
solid wood cutting.
Feature:
-
Precision helical rack and
pinion drives ensure smooth and dynamic running even at the highest
speed, at the same time reducing noise to the miniumum.
-
Main saw motor is linked to the saws by V-ribbed belt that results in the clean precision cut.
-
Cutting is automatically adjusted to the size of the panels according to the value set-dramatically reduces the cycle time.
-
Saw blades are easy to be loaded and unloaded in an efficient manner.
-
The
main saw and the scoring saw with electronic lift feed on the linear
guide that obtains lasting straight- line precision and rigidity and
guarantees excellent cutting finish.
Technical Parameter
Series
|
EP270
|
EP330
|
EP380
|
EP330( Rear Feeding)
|
Cutting Dimension
|
2700*2700*80/ 120 mm
|
3300*3300*80/ 120mm
|
3800*3800*80/120mm
|
3300*3300*80mm
|
Saw Carriage Speed
|
5-80m/min
|
Main Saw motor
|
15 / 18.5 kw
|
15 kw
|
Scoring Saw motor
|
2.2kw
|
Main Saw Dimension
|
380*4.4*60mm / 450*4.8*60mm
|
380*4.4*60mm
|
Scoring Saw Dimension
|
180*4.4-5.4*45mm
|
Air consumption
|
150L/min
|
Loading speed
|
|
13m/min
|
Max Feed Size
|
|
3050*1550mm
|
Max Stack Height
|
|
630/1200 mm
|
1. Heavy Frame
Heavy-duty frame ensures stable movement of the saw frame for precise sawing quality.
2. Movable air table
Air table reduces the friction to the minumun to prevent chipping and wearing of the materials.

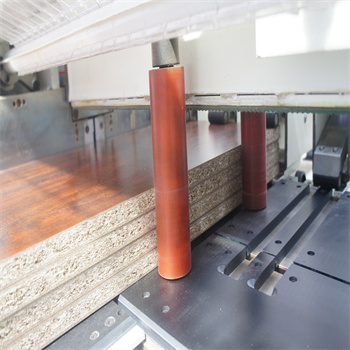

3. The clamps
The
clamps wrapped with rubber hold the material firmly and gently. Contact
pressure adjustable to accommodate different material and deliver
invariably perfect cut quality.

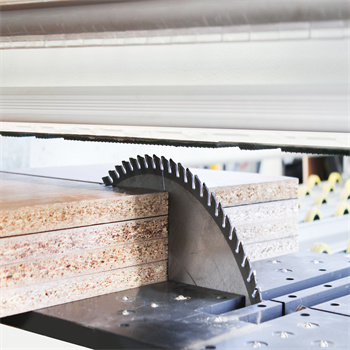

4. Saw carriage
The
precise and powerful movement of the servo motor driven saw carriage,
along with 15kw mian saw motor guarantee a clean finish even when
cutting multiple panels.
Application:
Mainly
used for all kinds of density boards, shaving boards, wood-based
panels, ABS panels, PVC panels, organic glass plates and solid wood
cutting.
Company introduction
-
EXCITECH is a company
specializing in the development and manufacture of automated woodworking
equipment. We are in the leading position in the field of non-metallic
CNC in China. We focus on building intelligent unmanned factories in the
furniture industry. Our products cover plate furniture production line
equipment, full range of five-axis three-dimensional machining centers,
CNC panel saws, boring and milling machining centers, machining centers
and engraving machines of different specifications. Our machine are
widely used in panel furniture, custom cabinet wardrobes, five-axis
three-dimensional processing, solid wood furniture and other non-metal
processing fields.
-
Our quality standard positioning is
synchronized with Europe and the United States. The whole line adopts
standard international brand parts, cooperates with advanced processing
and assembly processes, and has strict process quality inspection. We
are committed to providing users with stable and reliable equipment for
long-term industrial use. Our machine are exported to more than 90
countries and regions, such as United States, Russia, Germany, the
United Kingdom, Finland, Australia, Canada, Belgium,etc.
-
We are
also one of the few manufacturers in China that can carry out the
planning of professional intelligent factories and provide related
equipment and software. We can
provide a series of solutions for the
production of panel cabinet wardrobes and integrate customization into
large-scale production.
Sincerely welcome to our company for field visits.
