E6 PTP Machine with Tool Changer CNC Router

E6 PTP machine with tool changer cnc router

Product Description

The machine is designed to meet diverse complicated processing requirements, highly versatile with routing, drilling, cutting, side milling, sawing and other functions. At the same time, the machine is also equipped with 8-slots carousel tool changer, tool changes to be performed within 8 seconds. Vacuum table fitted with suction cups. Cropping the full sheet to your ideal size, routing, drilling, sawing, cutting, and milling—multiple functions, all in one. Easy for loading and unloading, spend less time but get more out of it.

1. Tool changer

The machine adopts carousel tool magazine, standard equipped with 8 tools, and  the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.

2. HSD spindle with boring unit

The machine adopts HSD automatic tool change spindle and Italy imported drills, including 9 vertical drills, 6 horizontal drills and 1 saw blade drill, which can meet more processing requirements of users.

3. Double station operating area

The machine is equipped with a double-station operating area, equipped with 18  pieces of German Schmitz vacuum adsorption blocks and 2 rows of positioning cylinders. It can be used for full-page adsorption and point-to-point adsorption. Easy for loading and unloading, spend less time.

4. Japan Yaskawa servo motor and driver

The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.

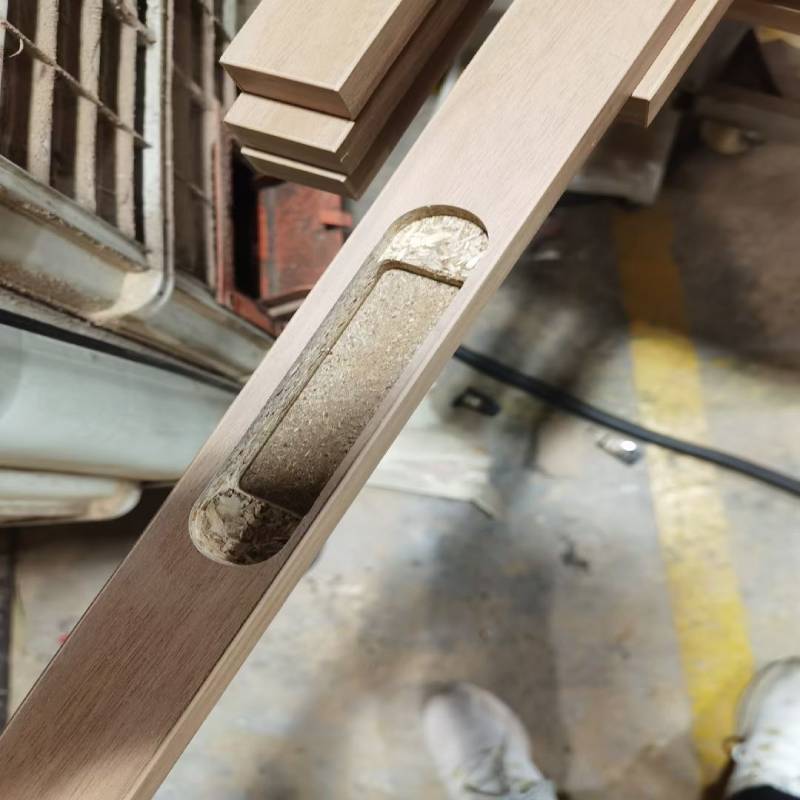

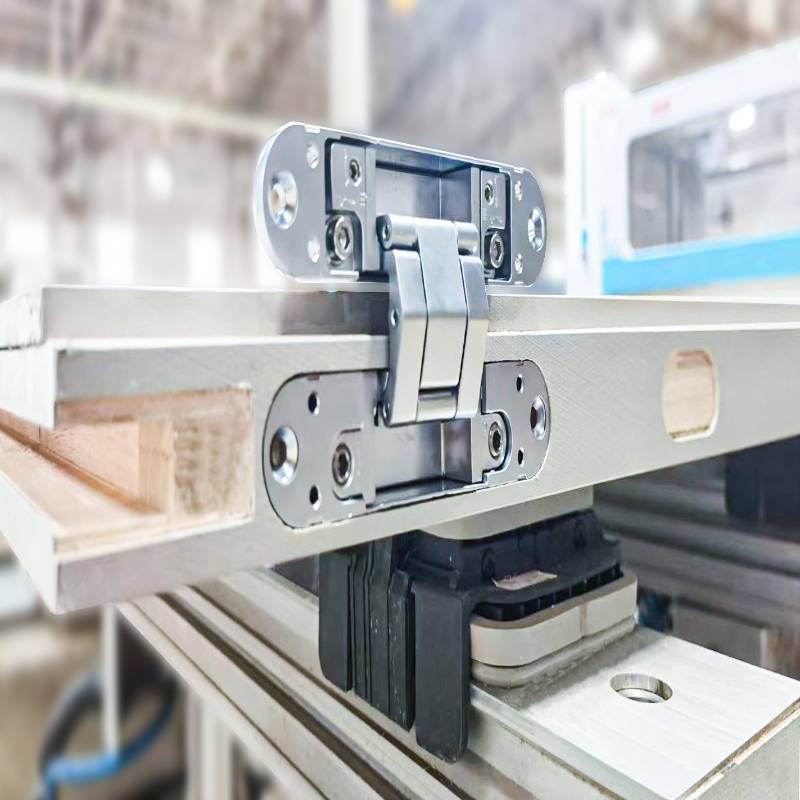

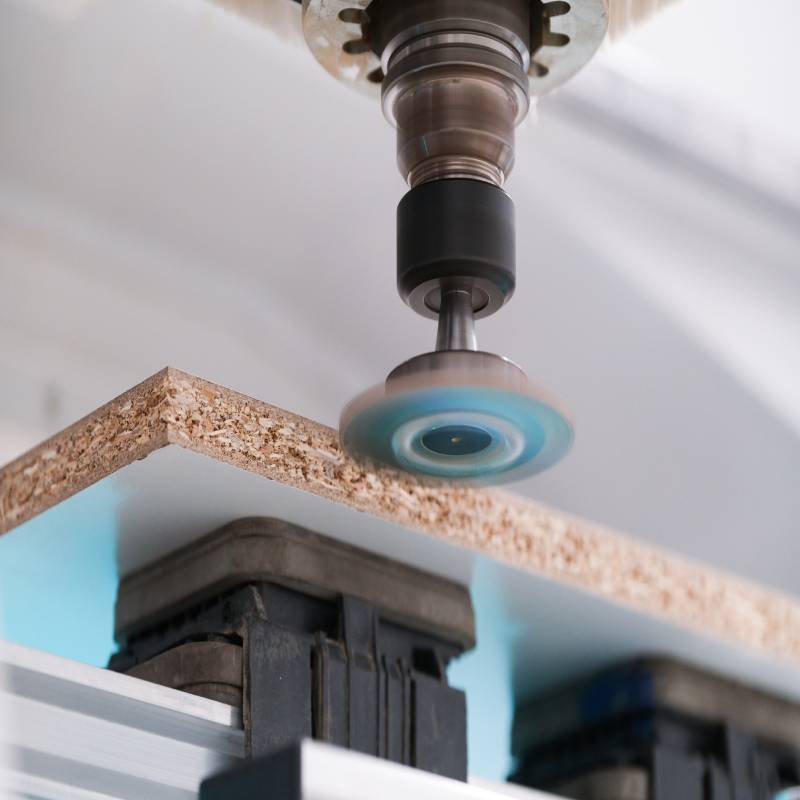

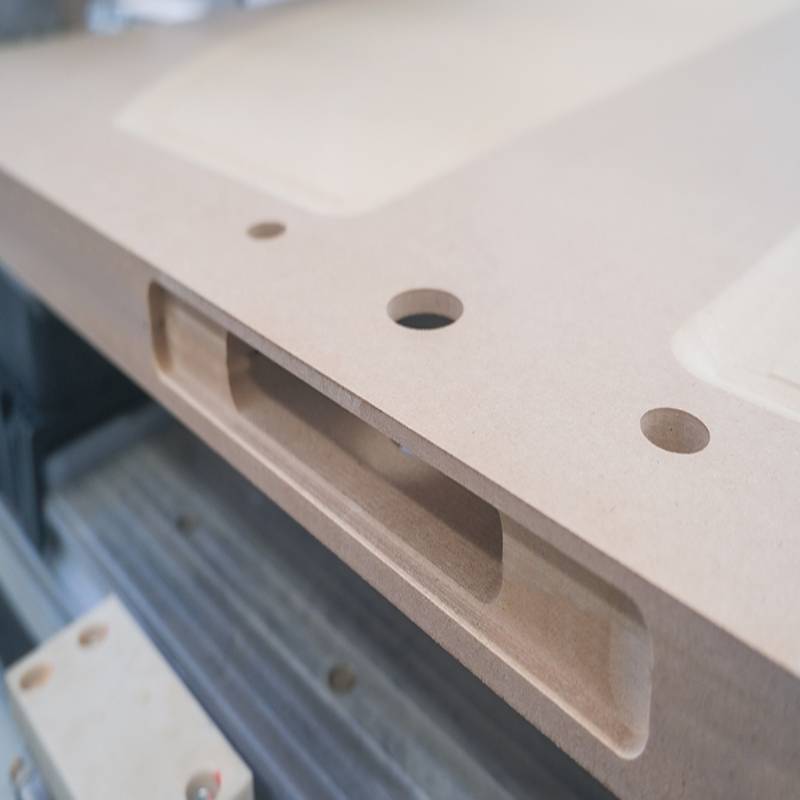

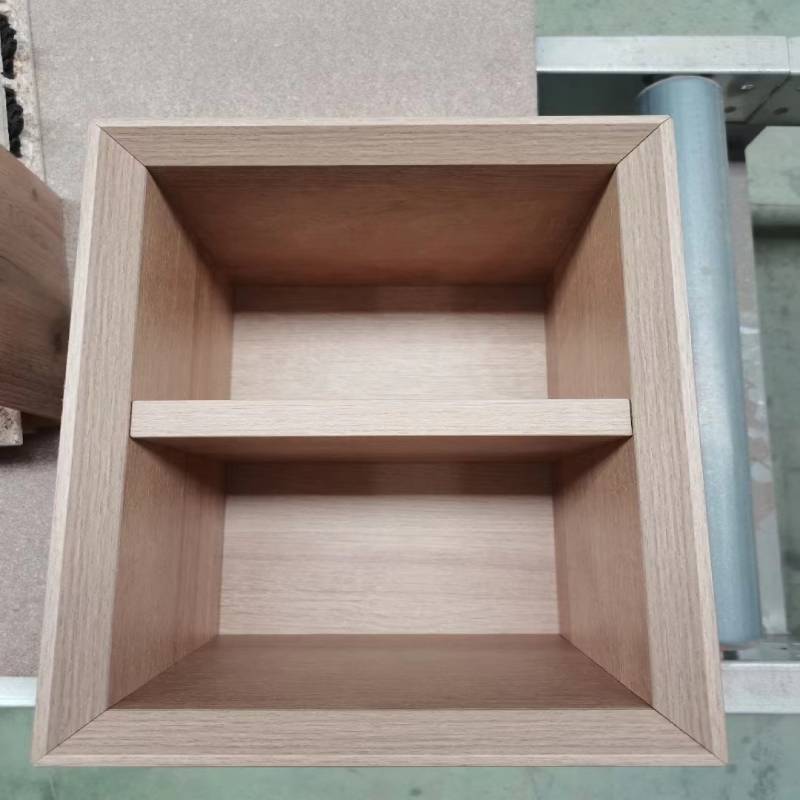

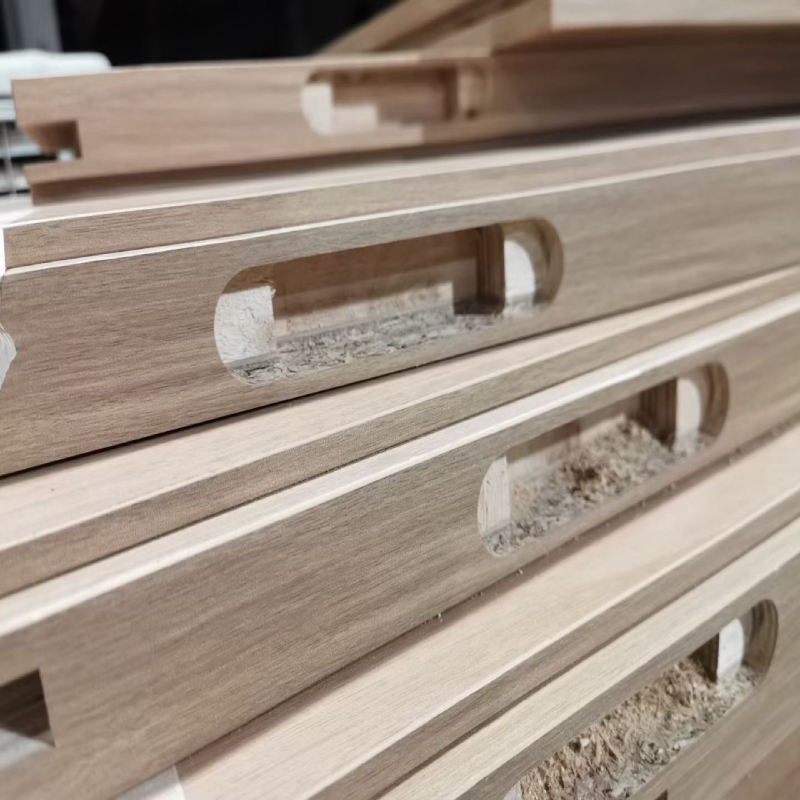

Sample

Application:

Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.

Other wooden products: stereo box, computer desk, musical instruments, etc.

Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.

Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
