E4 Pre Labeling Nesting Machinery

E4 pre labeling nesting machinery

Product Description

Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time. World’s first class components--Italian high-frequency Electric spindle, controller system and drill bank, German helical rack and pinion drives, Japanese self-lubricating and dust-proof square linear guides and high precision planetary gear reducers, etc.Truly versatile--nesting, router, vertical drilling and engraving all in one.  It is well-suited for panel furniture, office furniture, cabinets production.

Automatic labeling machine with Zebra ZTL410 printer available upon request.

Feature:

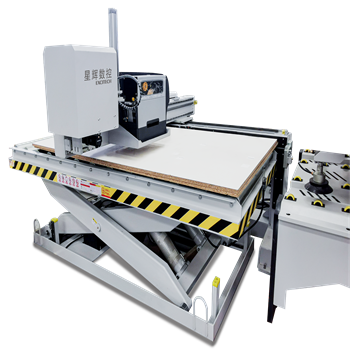

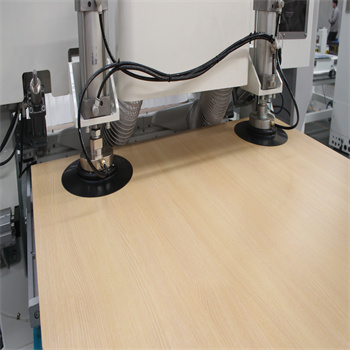

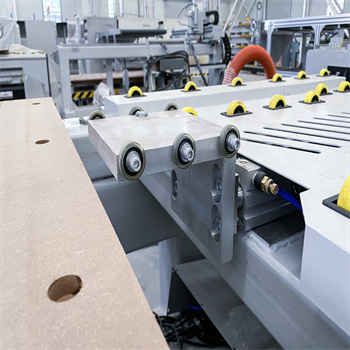

• Top of its range, this solution has the great advantage of not requiring the constant presence of an operator.The suction cups equipped on the gantry travels to the rear of the machine to pick up the workpiece from the scissor lift, which is then nested and drilled at the flat table.At the completion of the work cycle, the pusher transports the completed workpiece out of the working area allowing simultaneous loading of the next cycle.
• Features world's top class components.The enclosure over the gantry with LED light strip for display of the machine statue prevents flying out of materials and greatly enhance safety.
• Truly versatile -nesting, routering, vertical drilling and engraving all in one. It is well -suitable for panel furniture, office furniture, kitchen, cabinets production.

Detailed Images

1. HSD spindle with boring unit

HSD Spindle: 9kw, higher power available upon request.

Italian drill bank: 5+4 drills

2.Automatic barcode labeling machine

Automatic Bar code-Labeling system,faster than the average labeling speed in the industry,high productivity.

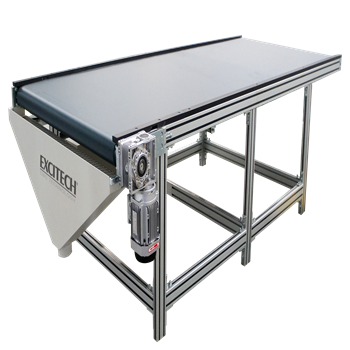

3.Automatic unloading system

4.Carousel tool changer

Carousel tool changer Nesting cnc machine,tool chanding is faster and easier.

5.Japanese YASKAWA Servo motor

Japanese SHIMPO reducer,reduced noise,high accuracy and consistent performance.

6.Japanese THK guide rail

Sample

Application:

Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.

Other wooden products: stereo box, computer desk, musical instruments, etc.

Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.

Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.

Company Information

About US

• EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
• Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
• We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can  provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.

Sincerely welcome to our company for field visits.

Packaging & Shipping

The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.
