CNC Router wood Machine Center: E2 Series woodworking center, An Entry-level work center, an extraordinary solution with competitive price.
CNC Router wood Machine Center
1.Woodworking Machine Introduction
E3 Series woodworking center,an Entry-level work center, an extraordinary solution with competitive price .With carousel tool changer, constructed with world-class components, consistent higher performance.Featuring Italian high frequency air-cooling electronic spindle and world- -class servomotor and driving system. Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.
2.Woodworking Machine Parameter (Specification)
Series |
Traveling Size |
Working Size |
Traveling Speed |
Working Speed |
Spindle Info. |
Tool changer |
Table Structure |
Power |
1325 |
2500*1260*200 |
2480*1230*180 |
45m/min |
20m/min |
9kw |
Auto carousel |
Vacuum table |
22kW |
1530 |
3140*1570*200 |
3080*1550*180 |
||||||
2030 |
3100*2100*200 |
3080*2050*180 |
27kW |
|||||
2040 |
4020*2100*200 |
4000*2050*180 |
||||||
2128 |
2900*2160*200 |
2850*2130*180 |
||||||
2138 |
3860*2170*200 |
3800*2130*180 |
3.Woodworking Machine Details

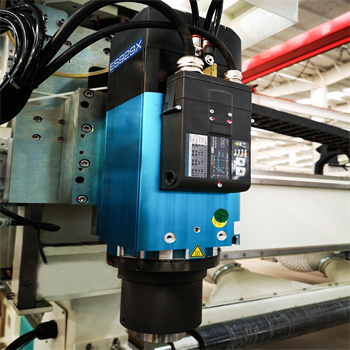

Italy 9.0 KW HSD spindle ,ES929X ,ISO coupling
Syntec controller made in Taiwan ,easy and friendly - Computer and ltalian Osai controller available upon request

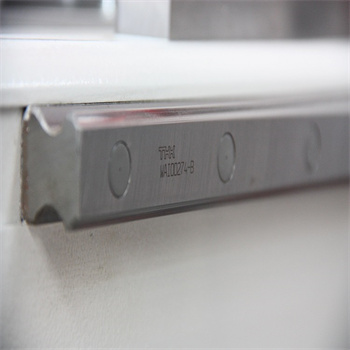

Japanese THK Linear guide rail,world No.1 brand with reliable quality

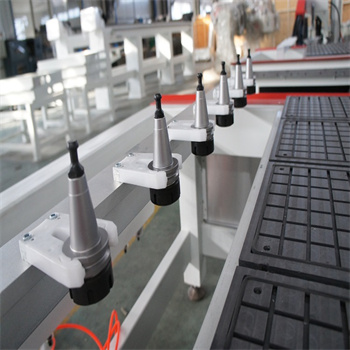

Smart carousel with 8 slots and stepper motor
Servo tool changer with 12/16 slots available upon request
Germany brand flexible Igus cables heat resistance , wearing resistant, long life span
Accurate Helical rack with smooth and quiet running
Japan YASKAWA Servo motor and Shimpo reducer ,reliable and long life span
Japanese YASKAWA drivers,reliable and World No. 1 brand
World famous brand SIMENS Relay with reliable performance
Germany brand Becker pump with 140m³/h 4KW , reliable

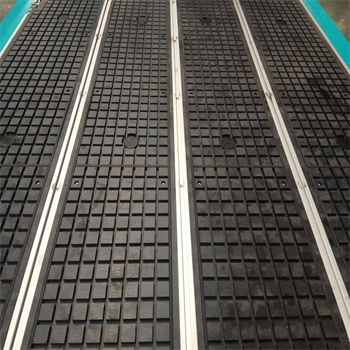

T-Slot vacuum table ,enables both vacuum hold and fixture hold by clamp, Flexible in panel holding
Packing by water-proof cover , dryer bags are put into the packing ,helping keep the machine dry during sea transportation for E3 Series woodworking center
4.Woodworking Machine Qualification
Production Facility
Picture taken at customer's factory
In-house machining facility
Quality control and testing
E3 Series woodworking center in Our Partners’Factories
Honors
1 |
Award for International Registration of Trademark |
2 |
China Famous Brand |
3 |
National Top 10 Well-Known CNC Manufacturer |
4 |
UL、CE、EAC、CSA、ISO Certificate and So on... |
5.Deliver,Shipping And Serving
Shipping
E3 Series woodworking center is packed with anti-rust plastic film for cleaning and damp proofing.
Fasten E3 Series woodworking center on the plywood pallet for safety and against clashing.
Port
Qingdao Port / Tianjin Port / Shanghai / As appointed
Service
■ From your first inquiries about our machine to close the deal to installation to technical support and maintenance, our team will be always with you.
■ Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the world , around the clock.
■ No matter whether the machine is used in North America or Africa, we can run diagnostics via dial-in on any of our computer-equipped machines for troubleshooting and correct controller settings to have you running again in a minute.
6.FAQ
1. How long is the machine warranty period? ?
Answer:EXCITECH offers 12 months warranty for service issue that are not caused by operator's errors. Service and support are available throughout the service life of a machine at fair and reasonable costs after warranty expires.
2. How is your after-sales service?
Answer:Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the wold , around the clock.
3. Where is your factory located?
Answer:Shandong and Guangdong. For more information, please refer to ABOUT US.
4. Are you a trading company or a manufacturer?
Answer: Excitech is a professional machinery manufacturing company. For more information, please refer to ABOUT US.
