CNC Milling Machine

CNC Milling Machine

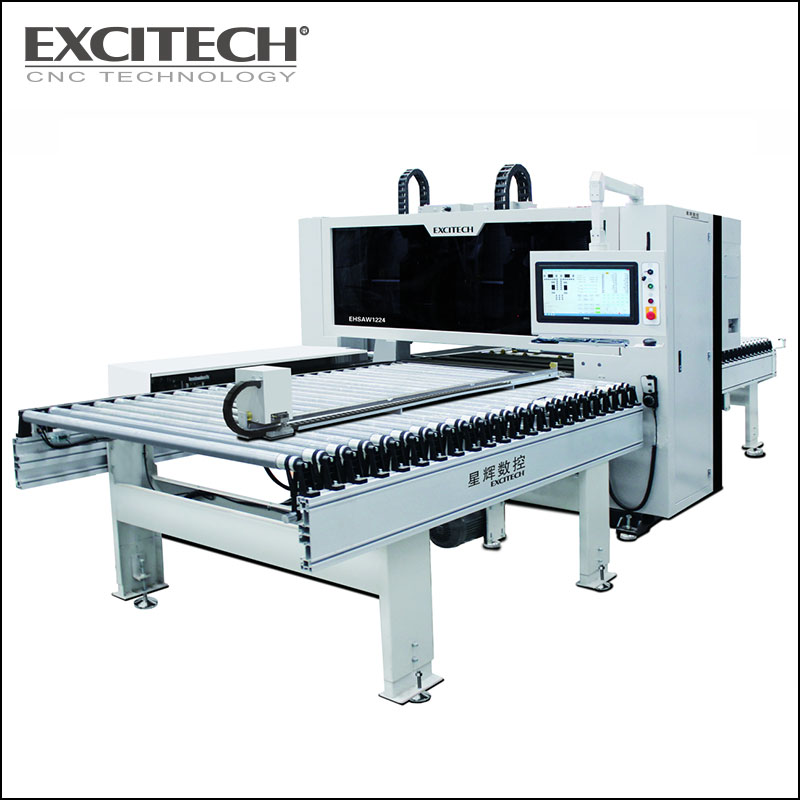

(Above picture is the 6 sided dilling machine with 2 top dril banks, 1 top drill bank is standard)

1.CNC Milling Machine introduction:

EHSA1224 is mainly used to drill the holes, make the grooves as well as mill the parts. The parts go to the infeeding roller table, the positioning pops will be up to realize the positioning. The clampers clamp the parts and send the parts inside of the machine to make the drill, groove and mill based on the CAM software programs.

Through out gantry structure equipped with upper and bottom drill banks as well as the spindles, makes the machine to process the side holes, vertical holes and the grooves at the same time. 6 sides holes can be processed in one time on this model, and it’s the good choice for the all kind of panel furniture factory.

2.CNC Milling Machine Parameters:

3.CNC Milling Machine Feature And Application

■  Six-sided drilling machine with bridge structure processes six sides in a single cycle.

■  Double adjustable grippers hold the workpieces firmly despite their length.

■  Automatic infeed without manual intervention

■  The head is configured with vertical drill bits, horizontal drill bits, saws and spindle so the machine could perform multiple jobs.

■  The Ability to process board as small as 50mm.

4.CNC Milling Machine Details

——Drill bank& spindle——

Upper side drill bank&3.5KW spindle+ bottom drill bank

——Two top drill banks are optional——

2 drill banks working simultaneously for more productivity; Lamello saw optional

——Automatic In-feed structure——

Infeed without manual intervention

——Movable controller screen——

——Throughfeed Beam stucture——

——Main components——

Delta inverter,Siemens,Schneider components with stable quality

——Strong Yaskawa motor&driver and high precision transmission parts——

Japanese Yaskawa motor and driver ;Japanese THK guide rails(Economical model is optional)

——Drilling cell is optional——

Require less operators than manual processing

Automatic production; Reduced labor cost;Eliminates errors

5.CNC Milling Machine Qualification

Production Facility

Picture taken at customer's factory

In-house machining facility

Quality control and testing

Drilling machine in Our Partners’Factories

Honors

7.Deliver,Shipping And Serving

(Packing and shipping pictures are for your reference based on a different model)

Shipping

The drilling machines are packed with anti-rust plastic film for cleaning and damp proofing.

Fasten the PTP center on the plywood pallet for safety and against clashing.

Port

Qingdao Port / Tianjin Port / Shanghai / As appointed

Service

■  From your first inquiries about our machine to close the deal to installation to technical support and maintenance, our team will be always with you.

■  EXCITECH provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the world , around the clock.

■  No matter whether the machine is used in North America or Africa, we can run diagnostics via dial-in on any of our computer-equipped machines for troubleshooting and correct controller settings to have you running again in a minute.

8.FAQ
