Carton Cutting and Packaging Machine Carton Box Forming Machinery

Carton cutting and packaging machine carton box forming machinery

I. Efficiency

Cut 5 ~ 13 pieces of cardboard per minute (depending on the following factors)

Selected processing mode, customized production/mass production.

• Thickness and cutting size of corrugated paper.
• Corrugated material quality.
• Check the cutting offset.
• Width of continuous corrugated paper: 350-1700 mm.
• Stacking height, including 120mm pallet, maximum: 1500mm.
• Stacking width, maximum: 1300mm.
• Longitudinal tolerance of cut to length:+/-1mm.
• Transverse tolerance of cut to length:+/-2.5mm.

Ⅱ. Quality requirements of corrugated continuous paperboard

• Thickness of corrugated paper: 2.5-6.5mm,+/-0.2mm.
• The maximum quality of raw materials is 2.30BC (DIN55468 standard).
• The quality of cardboard conforms to DIN55468 standard 4.
• Single corrugated, the maximum thickness is about 4 mm (mass: 1.10-1.40).
• Double corrugated, the maximum thickness is about 6.5mm (mass: 2.10-2.30).
• The stacking height of cardboard is not more than 1300mm.

Ⅲ. Appearance size

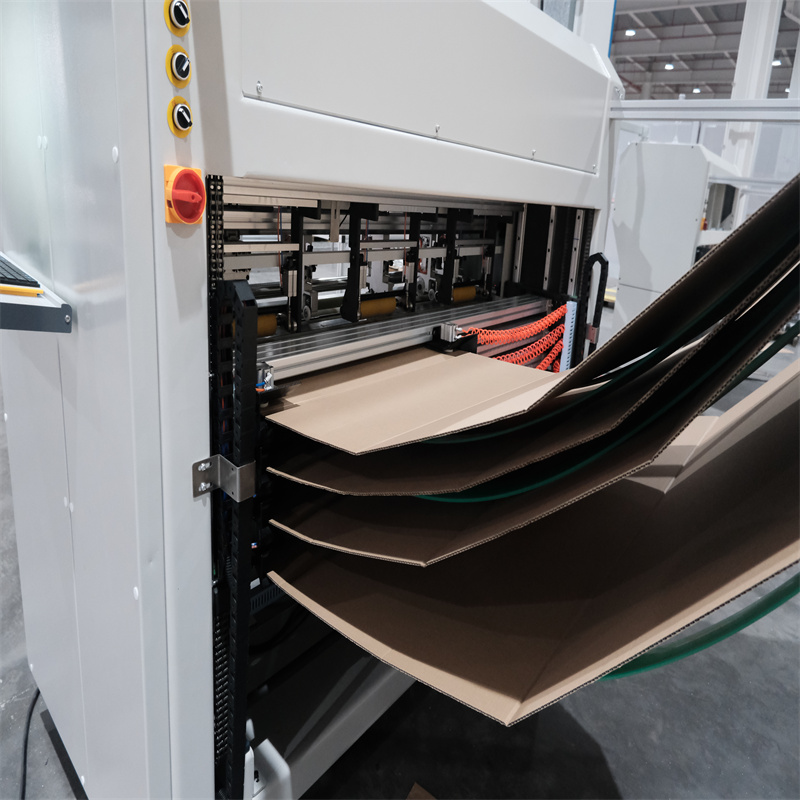

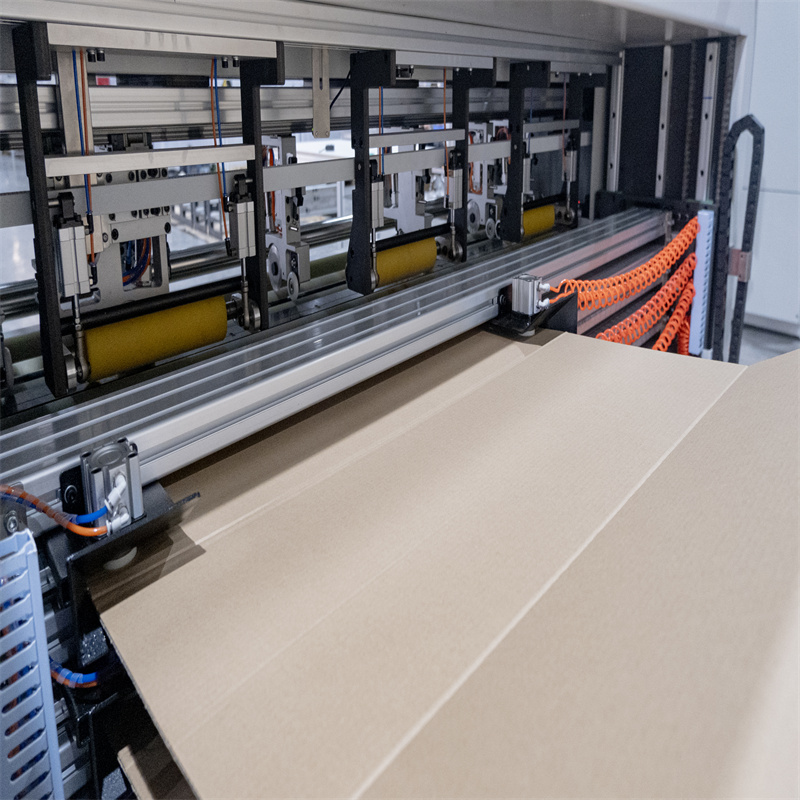

The cutting machine is equipped with 1 transverse device and 6 longitudinal devices.

In the production process, move the position for cutting and indentation.

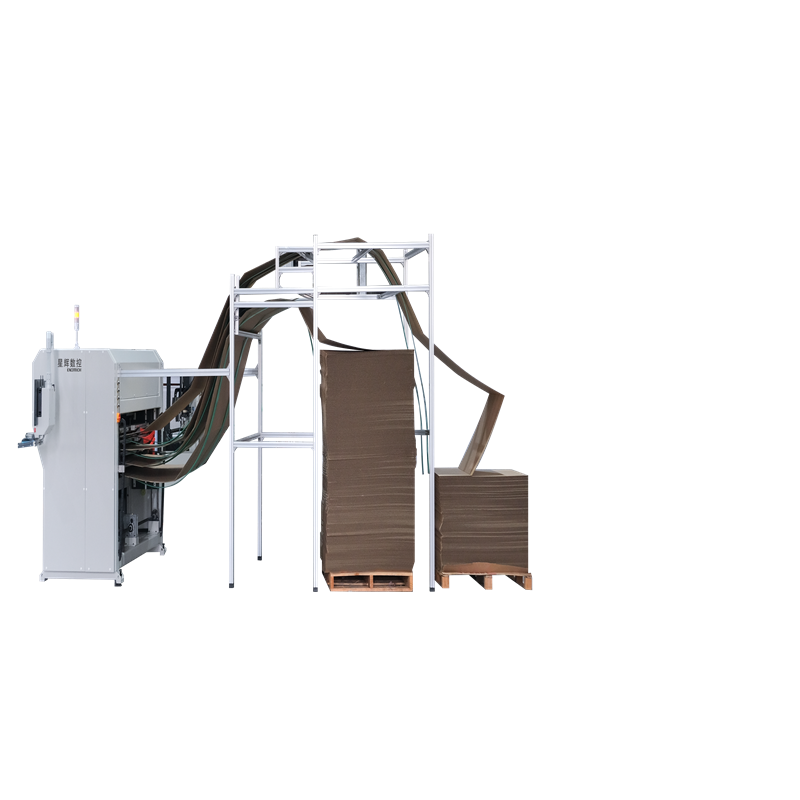

Paper storehouse

• Independent 6-paper library
• Rapid paper changing device

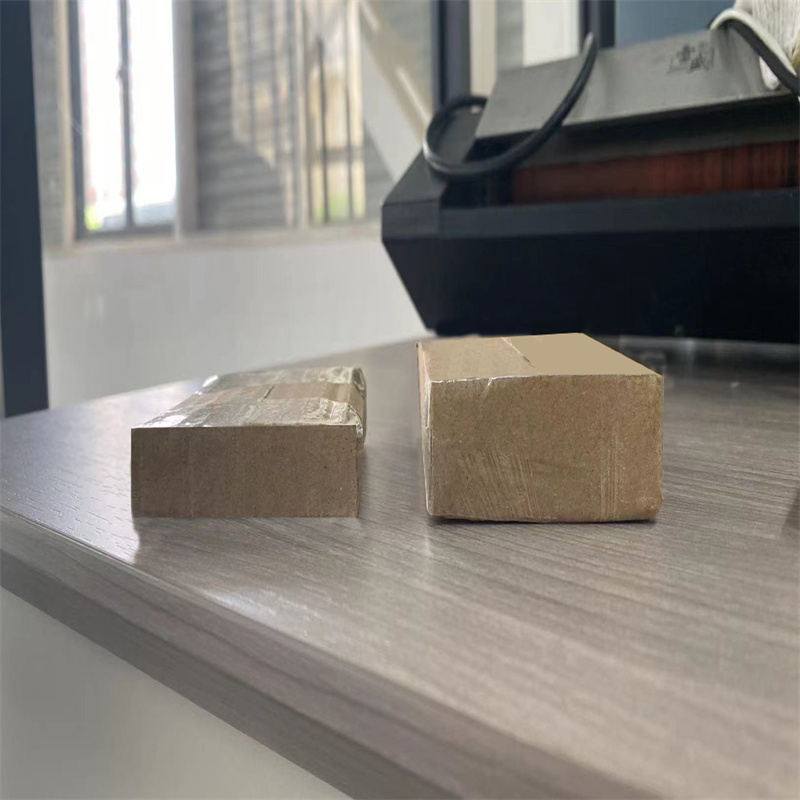

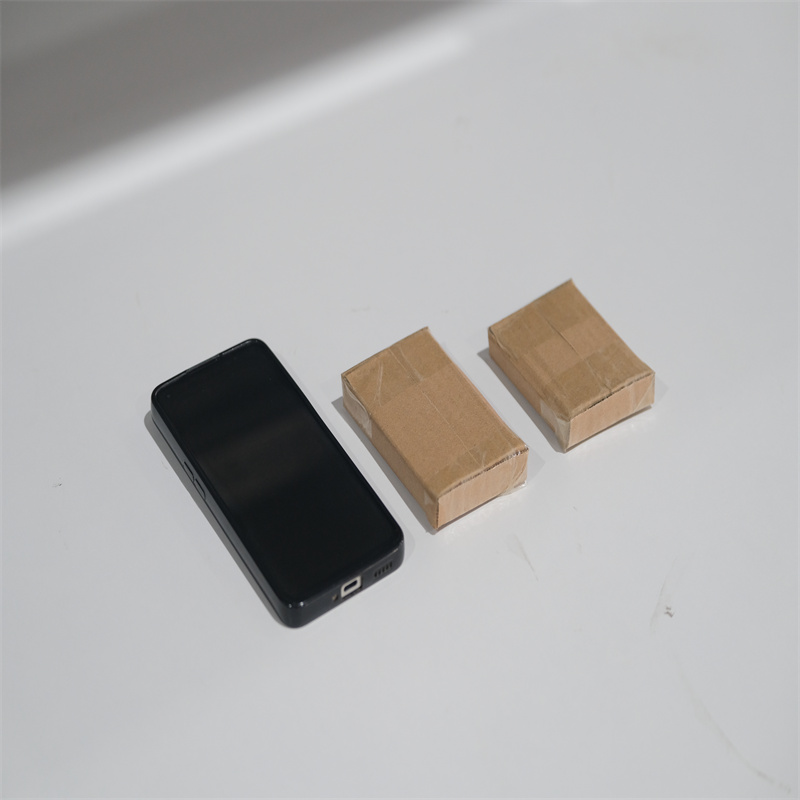

I.Box shape

All types of cartons are cut to length without hypotenuse;

The type of carton to be cut depends on the cutter configuration, the zero position and whether it should be trimmed or not.

Ⅱ. Control system

The latest control system based on PC

Hardware: stored program control, in line with the international standard of ICE 61131. Industrial computers, liquid crystal displays, including keyboards and mice.

Software：Professional operation interface standard data input interface.
