Product Description

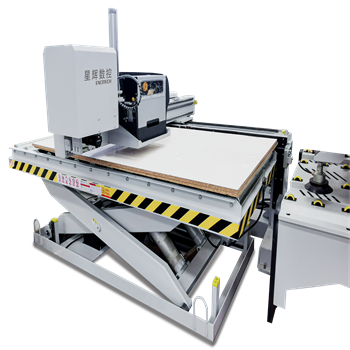

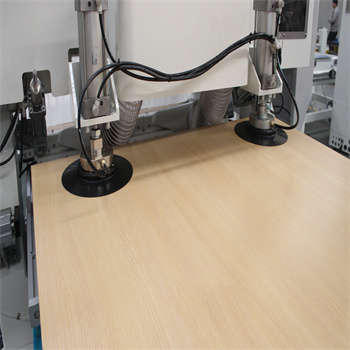

Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time. World’s first class components--Italian high-frequency electro spindle, controller system and drill bank, German helical rack and pinion drives, Japanese self-lubricating and dust-proof square linear guides and high precision planetary gear reducers, etc.Truly versatile--nesting, routering, vertical drilling and engraving all in one. It is well-suited for panel furniture, office furniture, cabinets production.
Automatic barcode labeling machine with Zebra ZTL410 printer available upon request.
Feature:
E4 Nested Based Production Flow
Series | E4-1224D | E4-1230D | E4-1530D | E4-1537D | E4-2128D | E4-2138D |
Travelling size | 2500*1260*200mm | 3140*1260*200mm | 3140*1600*200mm | 3700*1600*200mm | 2900*2160*200mm | 3860*2170*200mm |
Working size | 2440*1220*70mm | 3050*1220*70mm | 3074*1550*70mm | 3685*1550*70mm | 2850*2130*70mm | 3800*2130*70mm |
Loading and unloading speed |
15m/min |
|||||
Transmission | X Y rack and pinion drive, Z ball screw drive | |||||

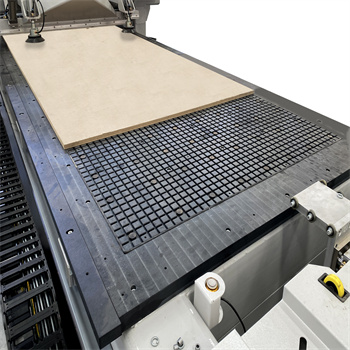

Table structure | Double layer vacuum table | |||||
Spindle power | 9.6kw/12KW | |||||
Spindle speed | 24000r/min | |||||
Travelling speed | ||||||
Working speed | 25m/min | |||||
Tool magazine | Carousel | |||||
Tool slots | 8/12 | |||||
Driving system | Yaskawa | |||||
Voltage | AC380/3PH/50HZ | |||||
Controller | OSAI/Syntec |
