5 Axis Wood Router Machine

As the professional manufacturers, Excitech would like to provide you 5 Axis Wood Router Machine. And we will offer you the best after-sale service and timely delivery. EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications.

Model:E-10

Send Inquiry

Alibaba

Product Description

As the professional manufacturers, Excitech would like to provide you 5 Axis Wood Router Machine. And we will offer you the best after-sale service and timely delivery.

Product Description

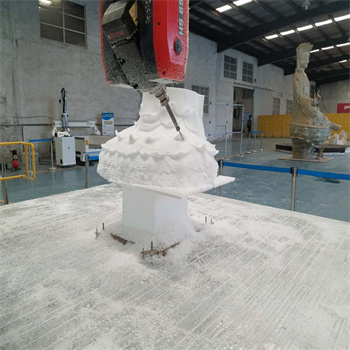

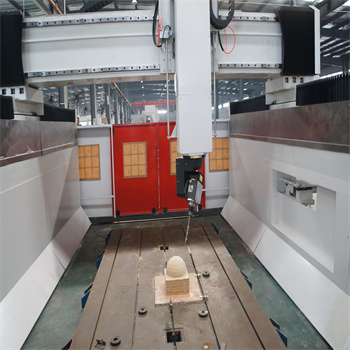

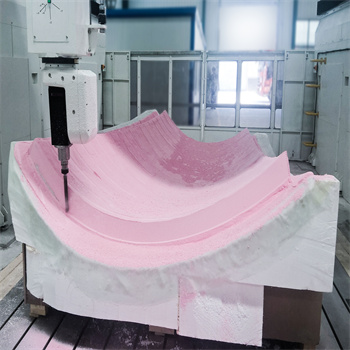

E10 machine is a five-axis processing center with OSAI controller—designed for the most demanding processing requirements, maximum precision, faster production. All parts of the machine are made of world top components, such as Italian imported OSAI control system, Yaskawa servo motor and Japan THK linear guide. Easy profiling on large work piece, well suited for 3D curved surface processing. Working speed, travelling speed and cutting speed can all be controlled separately, dramatically improve productivity.

Technical Parameter

Series	E10-2040D	E10-3060D
Travelling size	480028002000/2400mm	680038002000/2400mm
Working size	400020001600/2000mm	600030001600/2000mm
Transmission	X/Y/ Z rack and pinion drive
A/C Axis	A: ±120°, C:±245°
Spindle power	10 / 15KW HSD
Spindle speed	22000r/min
Travelling speed	40 / 40 / 10m/min
Working speed	20m/min
Tool magazine	Linear 8 slots
Driving system	Yaskawa
Voltage	AC380/3P/50HZ
Controller	OSAI
