Small Workshop Automation Solution | 13.8×6.3m Compact 2-in-1 Nesting Cell, Zero Workshop Renovation

EXCITECH Load & Label 2‑in‑1 robotic nesting cell brings lightweight automation for space‑constrained furniture workshops. 13.8×6.3m footprint, integrated loading‑labeling‑dust‑free cutting, modular expandable for future full‑line upgrade. Ideal for small‑to‑medium panel furniture manufacturers.

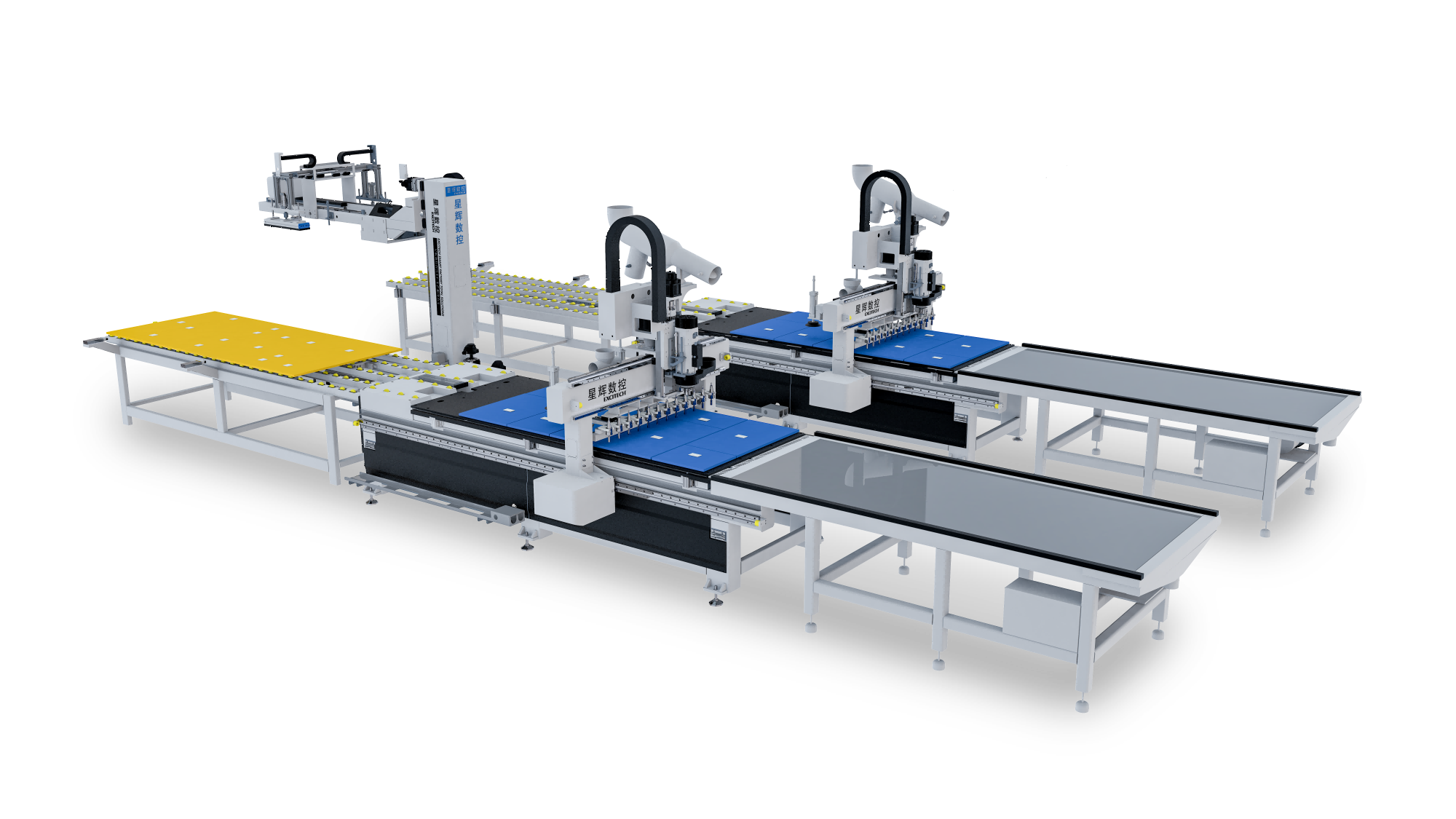

Load & Label 2‑in‑1 Robot Nesting Cell

Traditional automatic nesting lines require large floor space, heavy capital investment and civil‑work modification, which keeps many small‑and‑medium furniture factories away from automation. EXCITECH Load & Label 2‑in‑1 Robot Nesting Cell is an entry‑level compact automated workstation, designed for phased automation instead of full‑scale unmanned production in one single purchase. It solves three common pain points for panel plants: bulky separated layouts, high upfront investment, and inefficient manual handling and labeling.

The complete workstation occupies only 13.8m × 6.3m. It integrates loading zone, labeling station, dust‑free nesting area and unloading zone within one single cell. When compared with conventionally split automatic nesting layouts, the integrated cell can save more than 40% of required floor space in typical configurations and can be deployed in existing old workshops without civil reconstruction. The system consists of 2‑in‑1 load‑and‑label robot, CNC nesting machine and central control system.

Core Functional Highlights

Robot Loading with In‑transit Rotary Labeling

One robot handles panel picking and rotary labeling during material transfer. Separate labeling station and repeated manual panel handling are eliminated. While the nesting machine processes current batches, the robot prepares next panels in parallel to cut down idle time.

Panel‑level Traceability via Rotary Labeling

Unique barcode or label is applied to every single panel, fully synced with production order data. Labels can connect downstream edgebanders, six‑sided drilling machines and sorting stations, building data foundation for future plant‑wide unmanned operation.

Dust‑Free Nesting Performance

Enclosed chip removal structure, top brush system and centralized dust collection reduce dust contamination. It avoids surface scratches on PET and high‑gloss panels, meanwhile lowering workshop dust level and daily cleaning workload.

Modular Expandable Architecture

Standard reserved interfaces support later addition of robotic unloading & stacking, connection to edgebanders, six‑sided drill machines and conveying lines. Manufacturers can start from this single workstation and gradually expand toward a complete automatic production line based on real‑world return‑on‑investment.

Who This Solution Fits

• Small‑to‑medium cabinet and custom furniture factories upgrading from manual nesting to automation
• Existing workshops with limited floor space that cannot accommodate split automatic lines
• Manufacturers preferring low‑risk phased investment: deploy one cell first to verify ROI before further line expansion

EXCITECH packs automatic loading, rotary labeling and dust‑free nesting into a 13.8×6.3m robotic cell. For space‑limited panel furniture manufacturers, there is no need for factory renovation or one‑time heavy investment in full‑scale unmanned lines. You can achieve labour saving, continuous processing and full‑panel traceability at nesting stage, and extend your production system step‑by‑step as business grows.

Contact EXCITECH engineering team to get layout simulation and ROI assessment for your workshop.
