What a Turnkey Woodworking Production Line Delivers to Cabinet Manufacturers Beyond Higher Daily Throughput

Modern custom cabinet factories face two lasting operational challenges: insufficient skilled operators and surging demand for small-batch, one-off custom panels. Traditional manual discrete production cannot balance on-time delivery and consistent finishing quality.

EXCITECH modular turnkey woodworking lines change this situation. Rather than exclusive equipment for large-scale manufacturers, the phased modular layout allows small and medium cabinet shops to build automated production lines step by step. These integrated systems cut labor expenditure, stabilize processing consistency and lift order fulfillment capacity with measurable long-term returns.

1. Core Modules of EXCITECH Unmanned Custom Furniture Production Line

A complete automated woodworking line from EXCITECH consists of four interlinked core modules, covering the full workflow from raw sheet storage to finished packaged panels. All machinery and supporting MES software adopt unified standard communication interfaces to guarantee smooth data transmission and stable continuous operation.

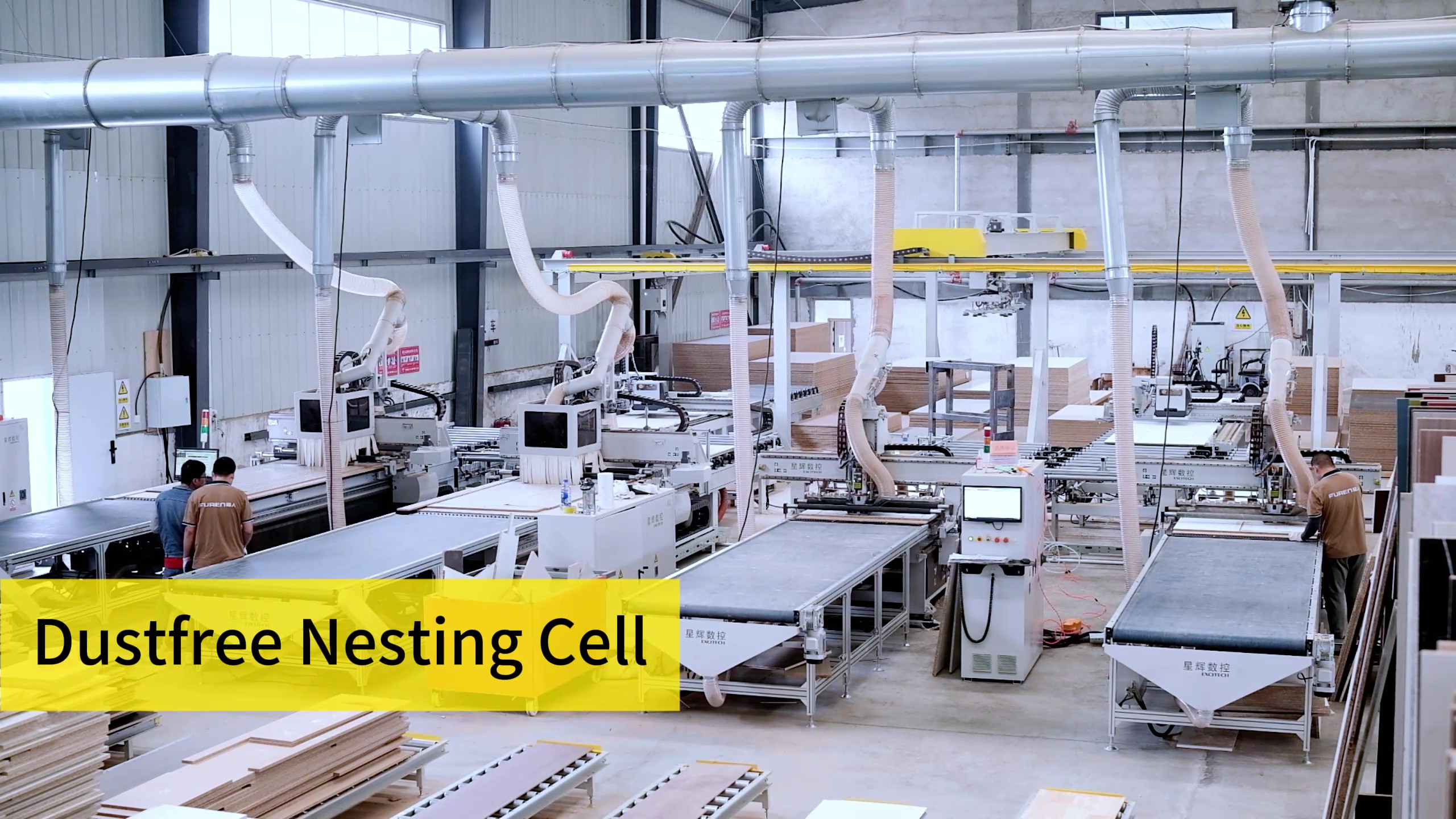

Intelligent Nesting & Cutting Cell

This module acts as the initial processing station, replacing manual sheet feeding, marking and unloading with automatic robotic handling, CNC cutting, barcode labeling and blanking. EXCITECH provides multiple models matching different production volumes:

• EK series dust-free nesting machine: fits medium-volume mixed custom orders, full dust removal system and self-developed CAM software lift sheet utilization above 96%;
• Heavy-duty E4 nesting center: supports high-output continuous cutting and automatic labeling;
• EP series CNC panel saw: designed for mass straight cutting and multi-sheet stacking processing.

All nesting equipment can be matched with loading & unloading robots to form fully unmanned cutting stations.

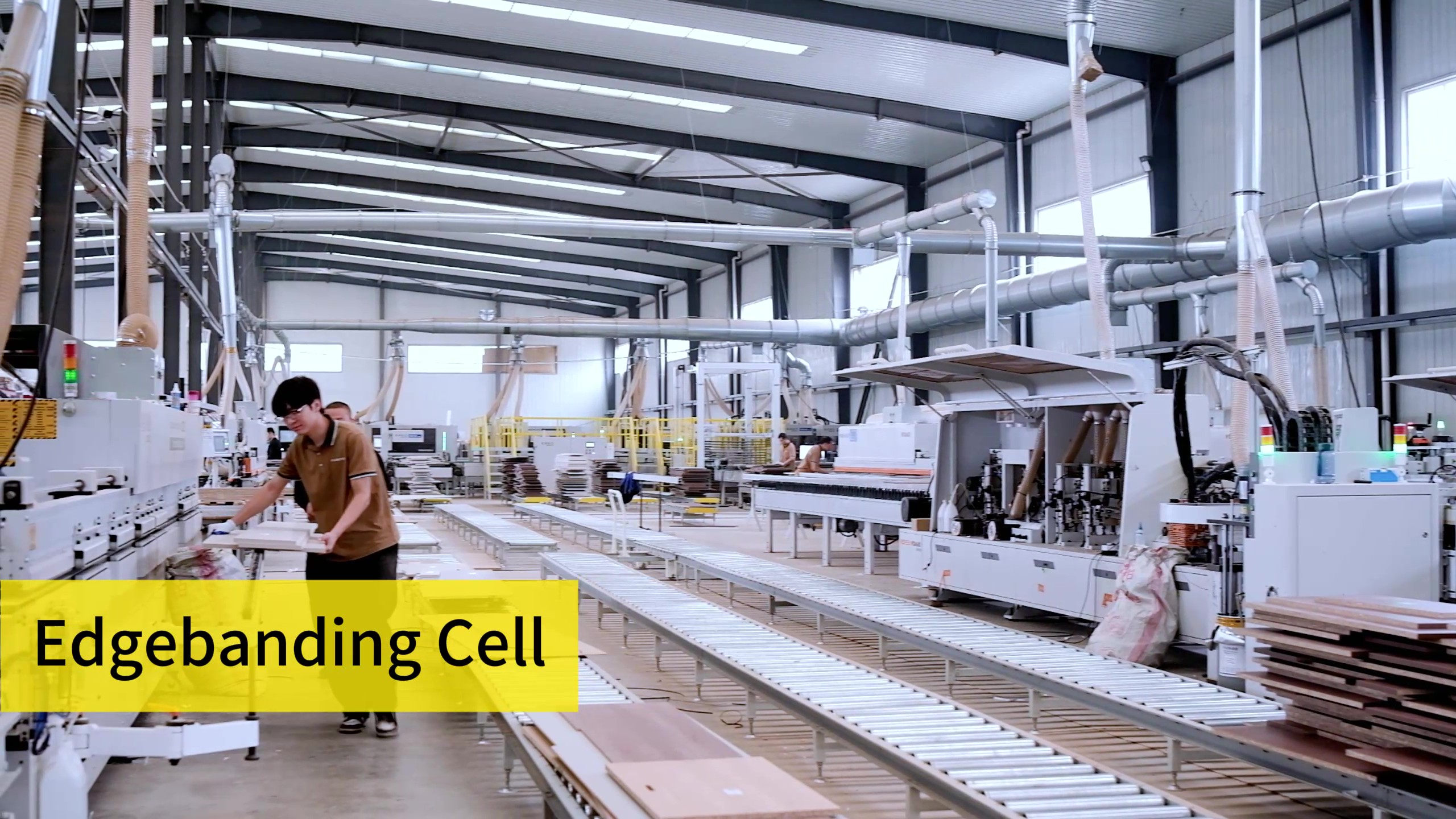

Automated Edge Banding Cell

• Edge banding is the most labor-intensive link in cabinet production, and this integrated cell eliminates repeated manual panel feeding and frequent parameter calibration. Users select configurations according to product positioning:
• EF series edge bander: standard choice for regular cabinet production, compatible with EVA glue and optional PUR glue system;
• G70U full-servo laser edge bander: supports glue-free laser edge sealing and dual-color PUR processing, stably processes 80mm narrow strips and 2800mm full-size door panels.

All edge banding units store complete processing formulas and adjust parameters automatically, enabling uninterrupted mixed-batch production without manual resetting.

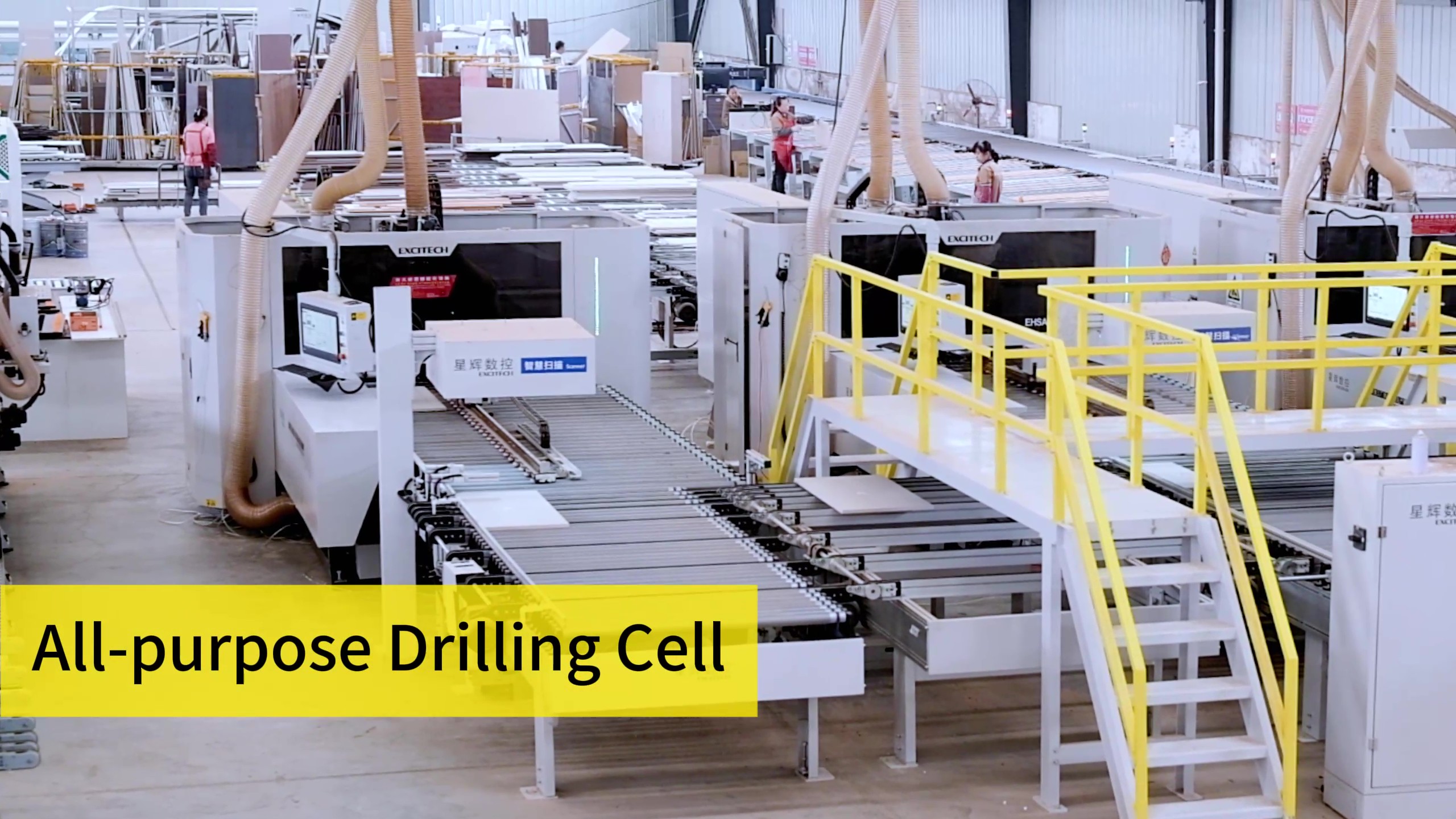

Six-Sided Drilling Machining Cell

After edge banding, the EHS-E six-sided drilling machine completes all hole drilling, side slots and Lamello connector grooves in one single clamping, removing manual panel flipping and secondary positioning.

The machine’s effective processing dimension reaches 2800×1200mm, and it can process small workpieces as thin as 70×30×10mm. The air flotation table ensures smooth automatic panel transfer to the next working section.

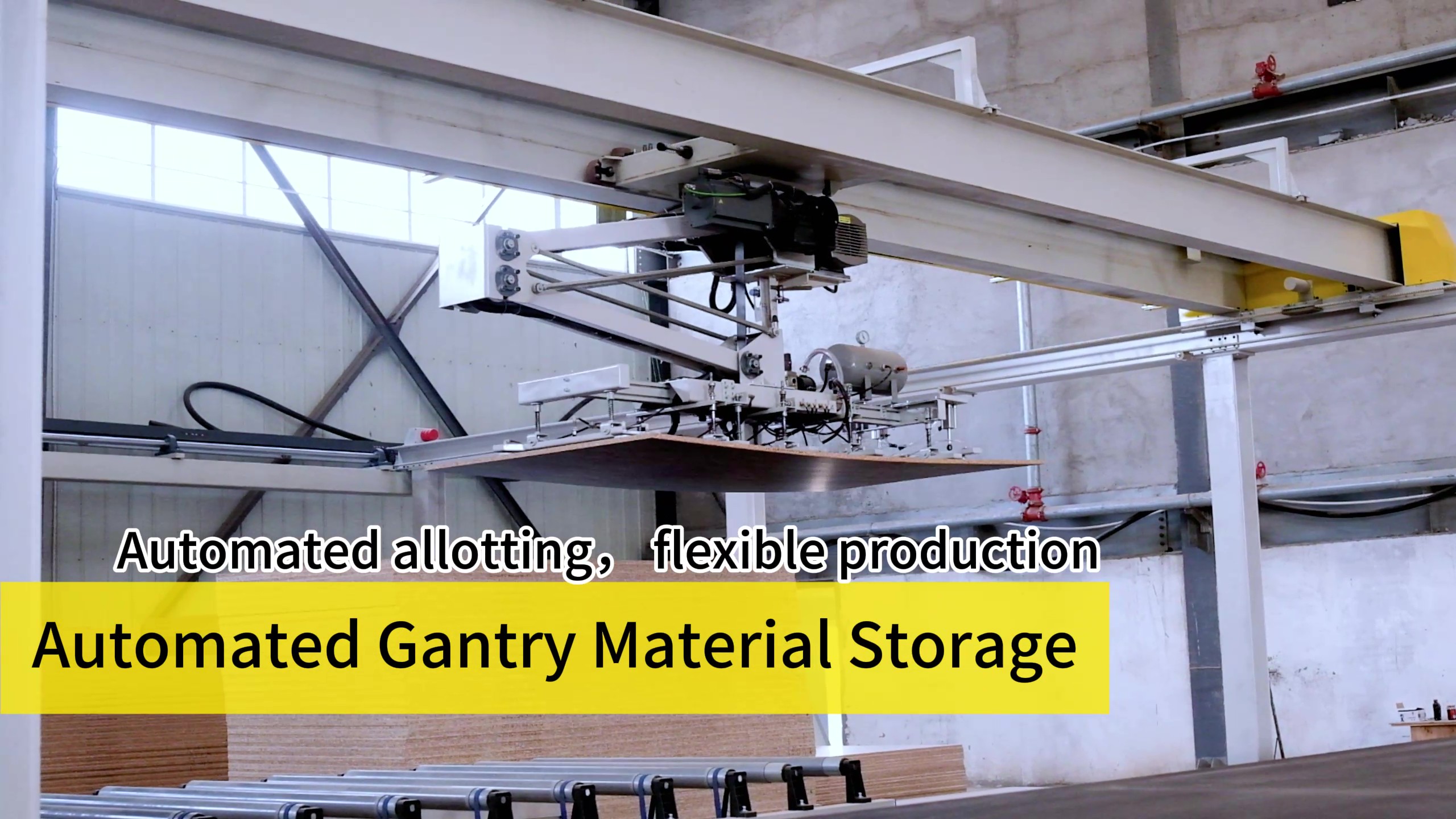

Central Storage, Logistics & MES Control System

Serving as the data and scheduling hub of unmanned production, this module includes automatic raw material warehouses, AGV/RGV transport equipment and unified MES management software. It realizes full-lifecycle part traceability, real-time production visualization and automatic task scheduling, laying the foundation for round-the-clock unmanned operation.

Intelligent Packaging Cell

Connecting directly to the six-sided drilling station, the packaging module forms the closed loop of automated woodworking production and realizes feasible lights-out manufacturing. It contains two sub-units:

1. Custom carton cutting system

The equipment cuts corrugated boards into cartons sized to match each order’s panel dimensions. Factories no longer need to stock various prefabricated carton specifications, lowering packaging inventory pressure and fitting one-off custom production perfectly.

2. Automatic sorting, packaging & palletizing unit

The system sorts panels by order groups, matches corresponding hardware fittings, seals cartons, attaches shipping labels and stacks finished goods on pallets. It reduces manual sorting errors and missing accessories, delivering uniform packaging quality ready for direct logistics delivery.

2. Tangible Operational Benefits Brought by EXCITECH Turnkey Production Lines

Lower Labor Demand & Stable Operating Cost

Fully connected automated lines only require a small number of on-site staff for patrol supervision and auxiliary work. The system reduces reliance on experienced machine operators and manual handlers, easing the industry-wide skilled labor shortage and stabilizing monthly labor expenditure.

Steady Output & Consistent Machining Precision

Unmanned continuous operation avoids idle time caused by shift handover. Closed-loop digital control keeps uniform dimensional tolerance across all production shifts, cutting rework and panel scrap triggered by human operation errors.

Native Compatibility with One-Batch-One-Item Custom Production

The production line automatically identifies panel sizes, raw materials and craft requirements, then calls matched processing parameters. It runs mixed orders with diverse specifications without separate setup, adapting to mainstream small-batch customized furniture market demands.

Scalable Layout for Gradual Lights-Upgrading

Modular digital architecture allows factories to expand functions as order volume rises. Users can add unmanned night shift operation or full lights-out production later without replacing existing core equipment.

Long-Term Protected Equipment Investment

All production modules adopt universal communication protocols. Shops can start investment with an independent nesting cell and expand edge banding, drilling and packaging sections gradually, avoiding total equipment replacement during later automation upgrades.

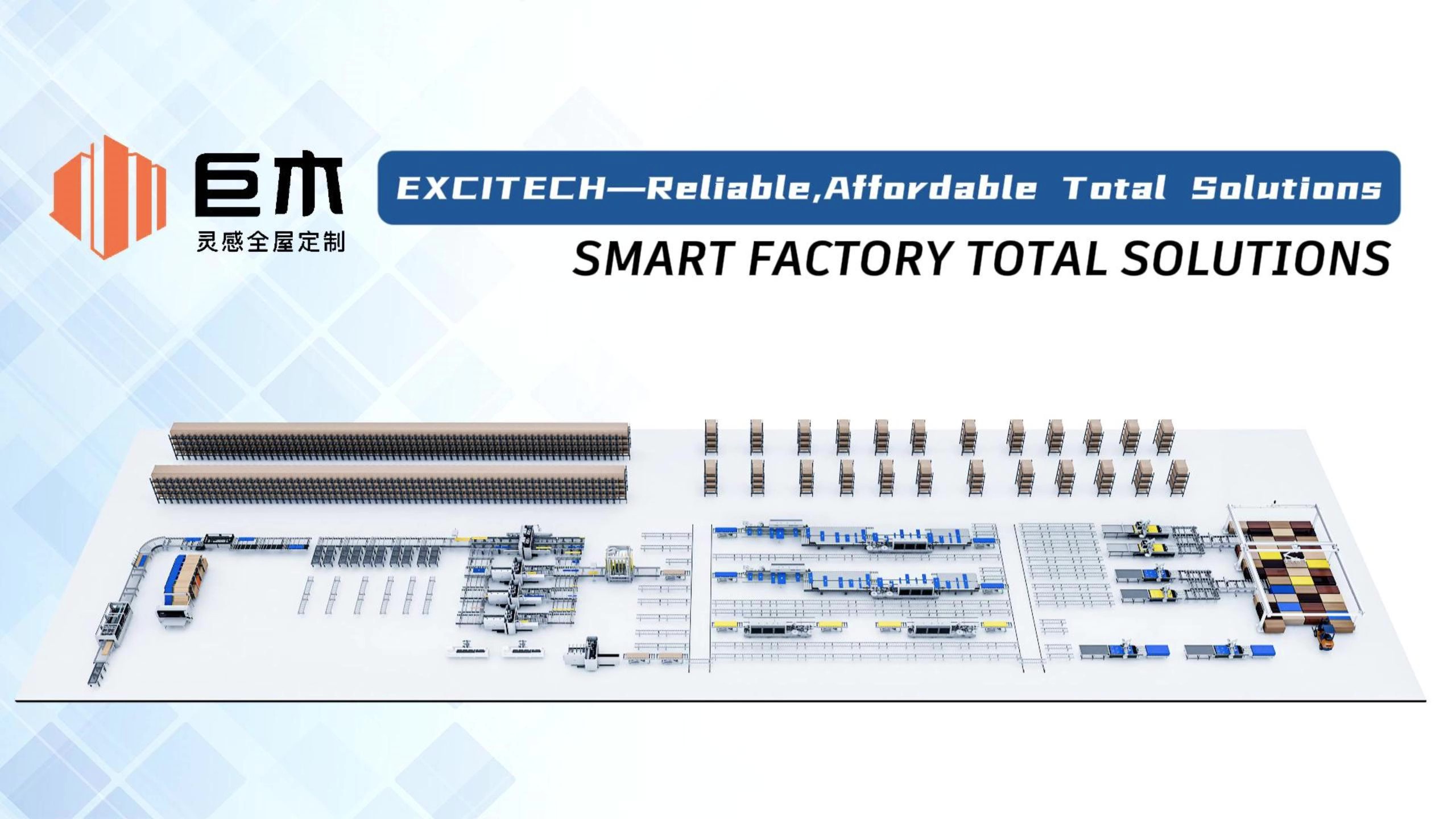

EXCITECH Custom Turnkey Woodworking Solutions

EXCITECH supplies fully configurable automated furniture production lines, covering standalone nesting cells, independent edge banding stations and complete end-to-end turnkey workshops. All core machinery and matching software are self-developed and manufactured in our standardized production base, with high cross-equipment compatibility and long-term stable running performance.

Our engineering team designs tailored layout schemes based on each client’s daily output, product categories, workshop space and budget, balancing practical performance and reasonable total investment cost.

What is your biggest bottleneck in current panel processing? Leave your core product types and daily production volume in the comment section. Our technical team will send you a free preliminary workshop layout drawing and ROI analysis reference within 24 hours.
