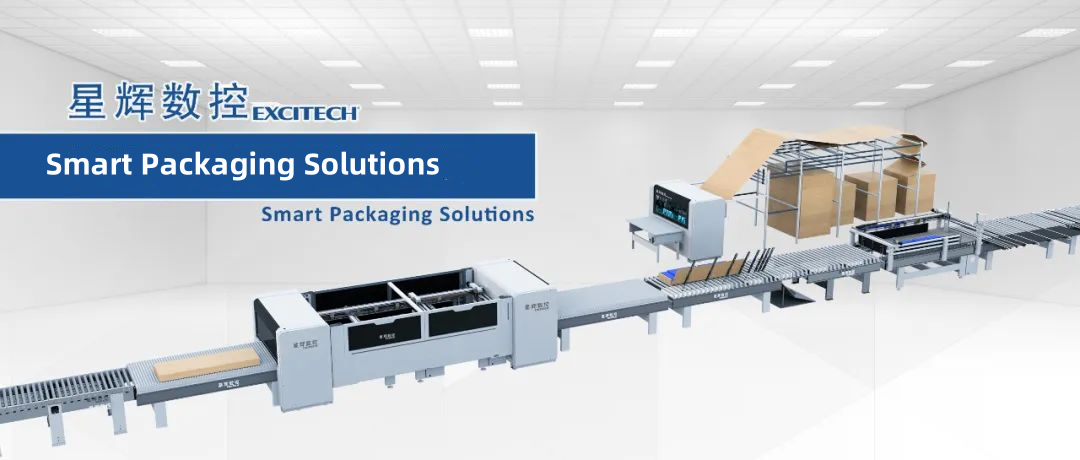

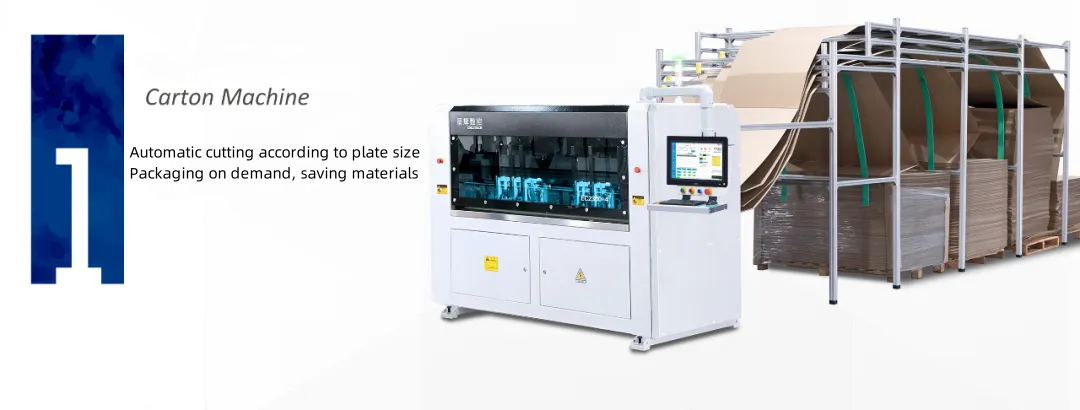

A multifunctional carton packaging machine developed by EXCITECH.

1. EXCITECH CARTON MACHINE can make packages of different sizes according to requirements, realize on-demand packaging and avoid waste.

2. EXCITECH CARTON MACHINE can still make large-size boxes despite its small size. For example, the paper cutter of EC2300-4 four-paper warehouse covers an area of 9250*2300*2500mm, while the paper cutter of EC2300-2 two-paper warehouse covers an area of 6350*2300*2500mm.

3. EXCITECH CARTON MACHINE can make narrow boxes with a thickness of 13mm, and the minimum box size can reach 80*60*13mm.

4. EXCITECH CARTON MACHINE adopts an independently developed paper feeding structure, which reduces the possibility of paper jam.

5. EXCITECH CARTON MACHINE adopts a special cutter made of high-speed steel, which is treated by grinding technology, making the cutter sharp and wear-resistant and improving its durability.

6. EXCITECH CARTON MACHINE can adapt to different types of paper, including corrugated paper and continuous cardboard, and realize arbitrary switching.

Excitech self-developed, complete set of indication system, packaging leak detection and filling, no package leakage.

The only 13mm thin carton in the market, other brands are 18~25mm, and the 13mm backboard can be packaged separately.

Small size and large throughput

4-9 boxes/minute capacity

Unique paper feeding structure design, not easy to jam.

High-speed steel special corrugated paper cutter, which improves durability by multiple times.

AI intelligent system, maximum paper utilization

Import special roller for cutting materials to ensure long-term cutting resistance, no wear and tear.

The tool rest is integrated and adopts FESTO cylinder from Germany, with high efficiency and stability.

Minimum box size that can be cut: 80*60*13mm.

Maximum cutting width: 1600mm

Tool magazine configuration: 1 horizontal +6 vertical

Paper library configuration: 2 libraries /4 libraries

Thickness of cut corrugated paper: 2-6.5mm.

Stacking height: excluding pallets, the maximum is 1800 mm.

Stacking length: 1100mm max.

Conveying speed: 60 ~ 120m/min

Cutting efficiency: 4-9 PCs/min

Minimum knife pitch of paper cutter face to face: 12mm.

Minimum knife distance from back to back of paper cutter: 60mm.

Accuracy of cutter distance of longitudinal cutter row: 1.5 mm.

Traction direction accuracy: 0.5% max.

Overall dimensions: four storehouses 9250*2300*2500mm/ two storehouses 6350*2300*2500mm.

Height of working face: 850mm
